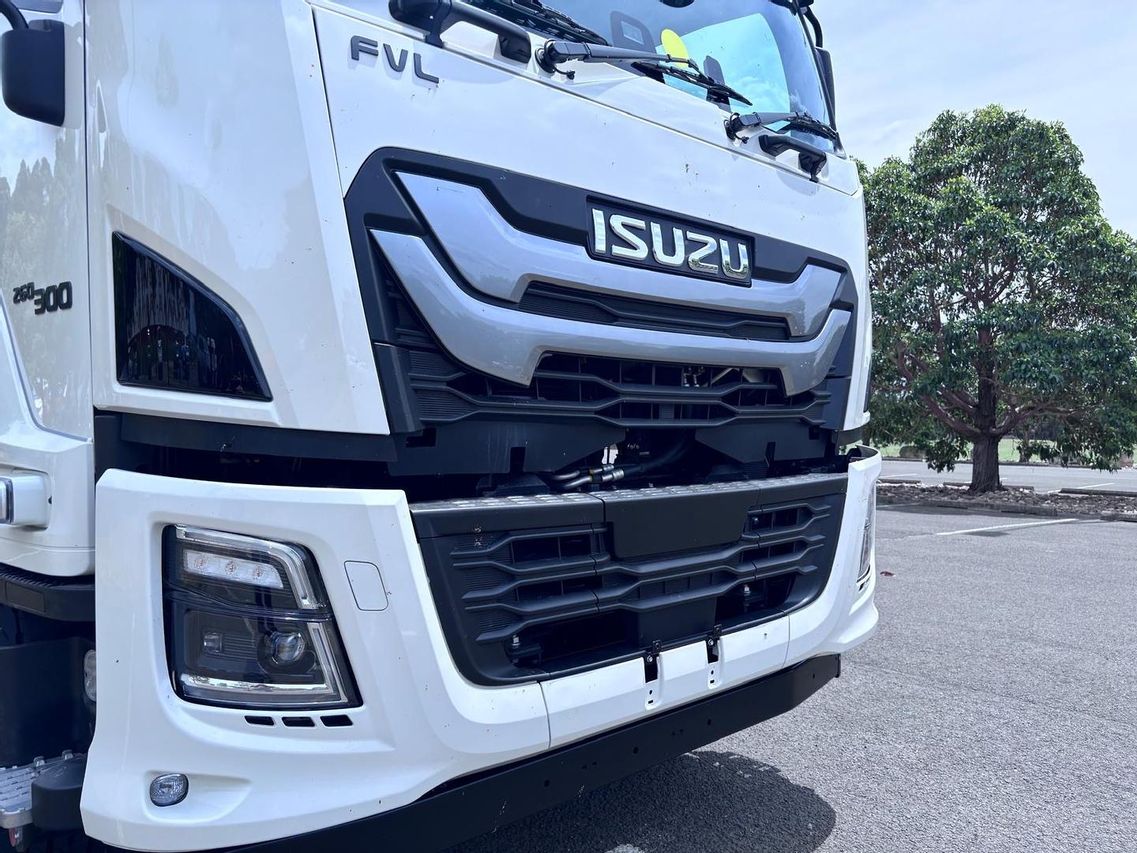

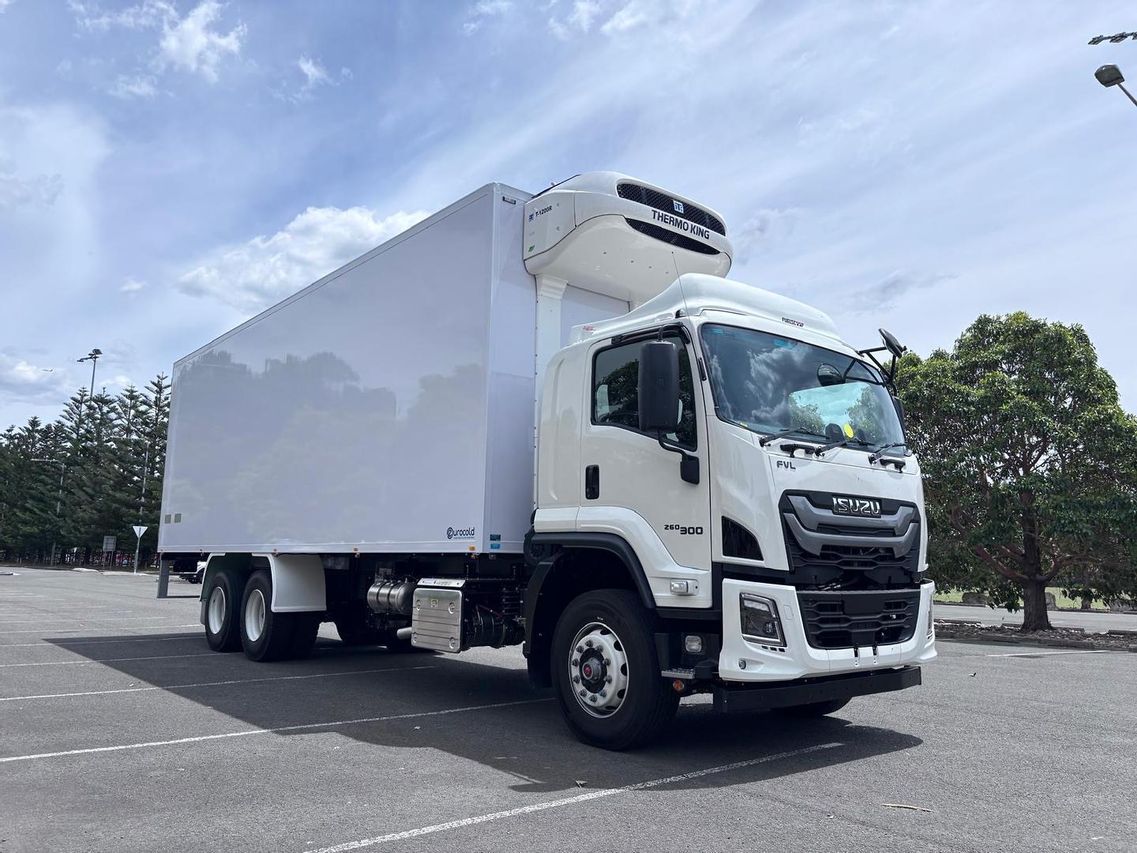

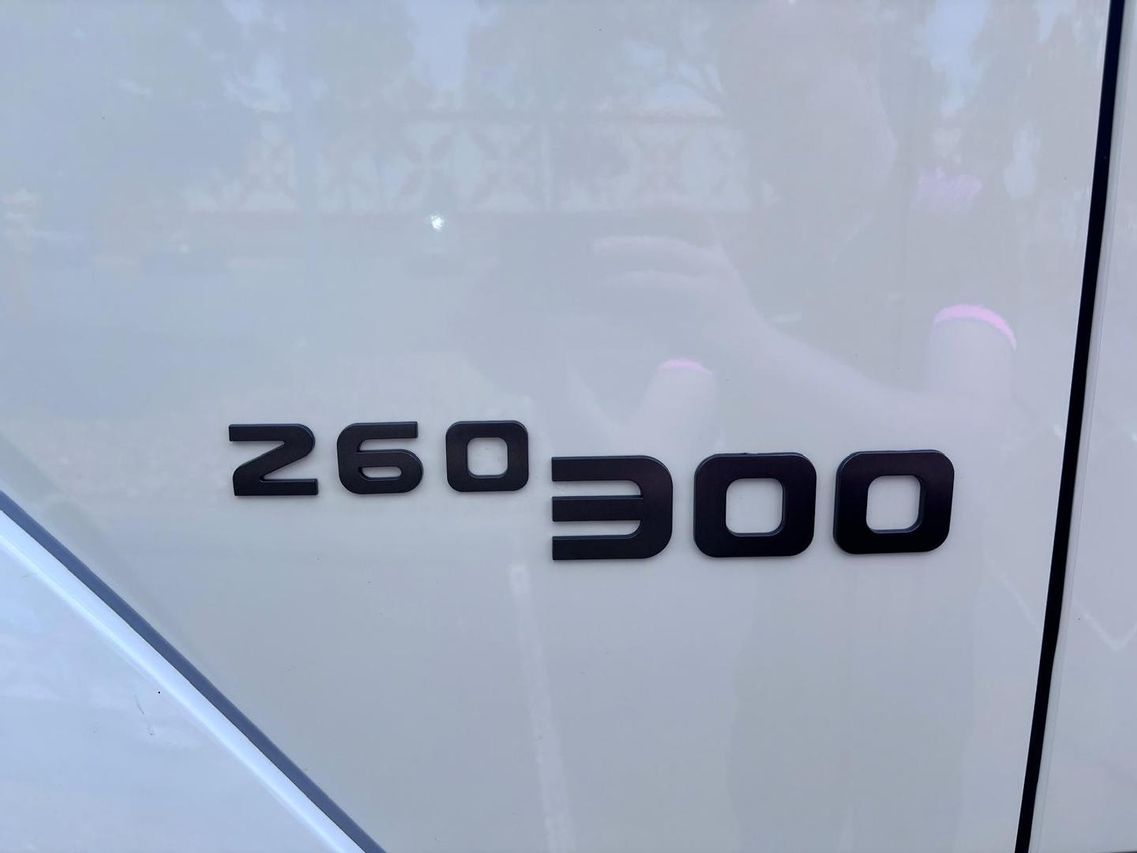

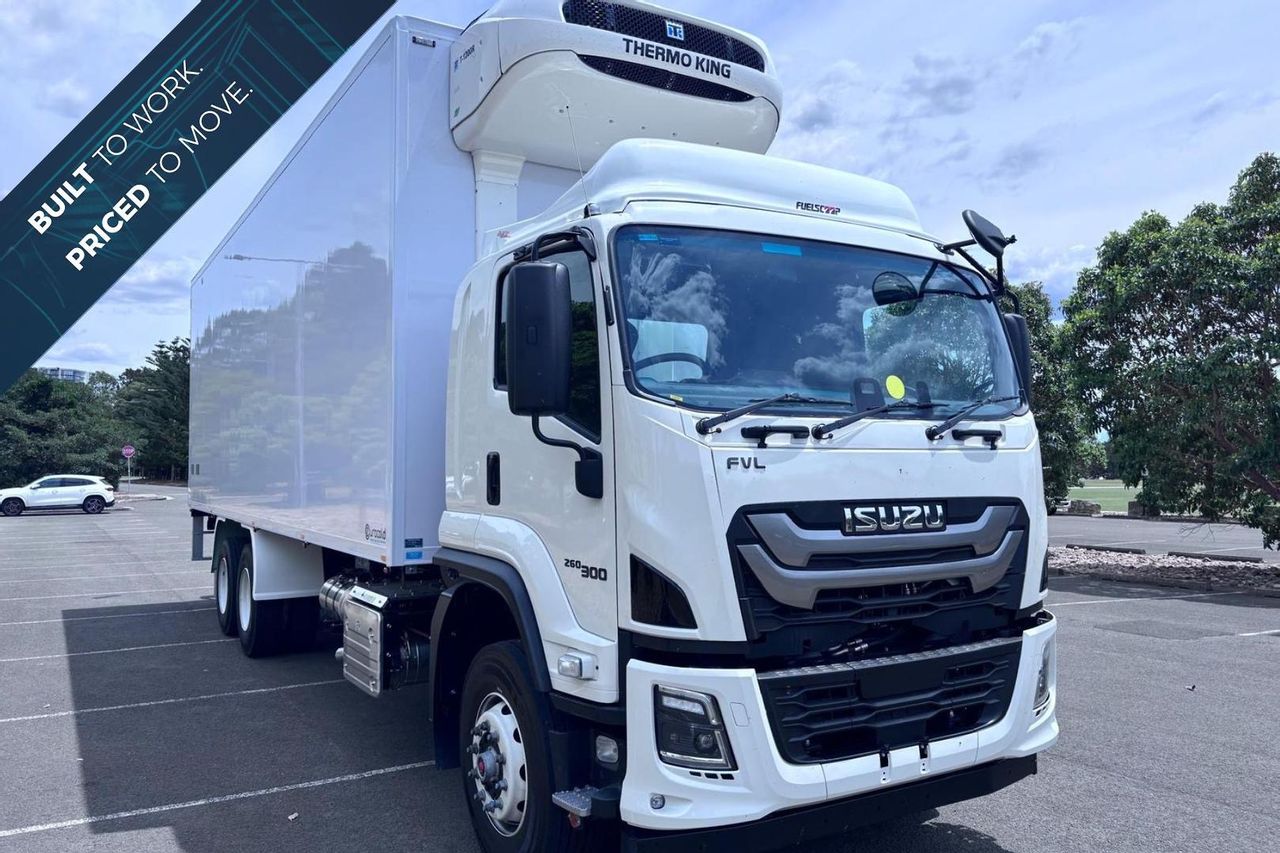

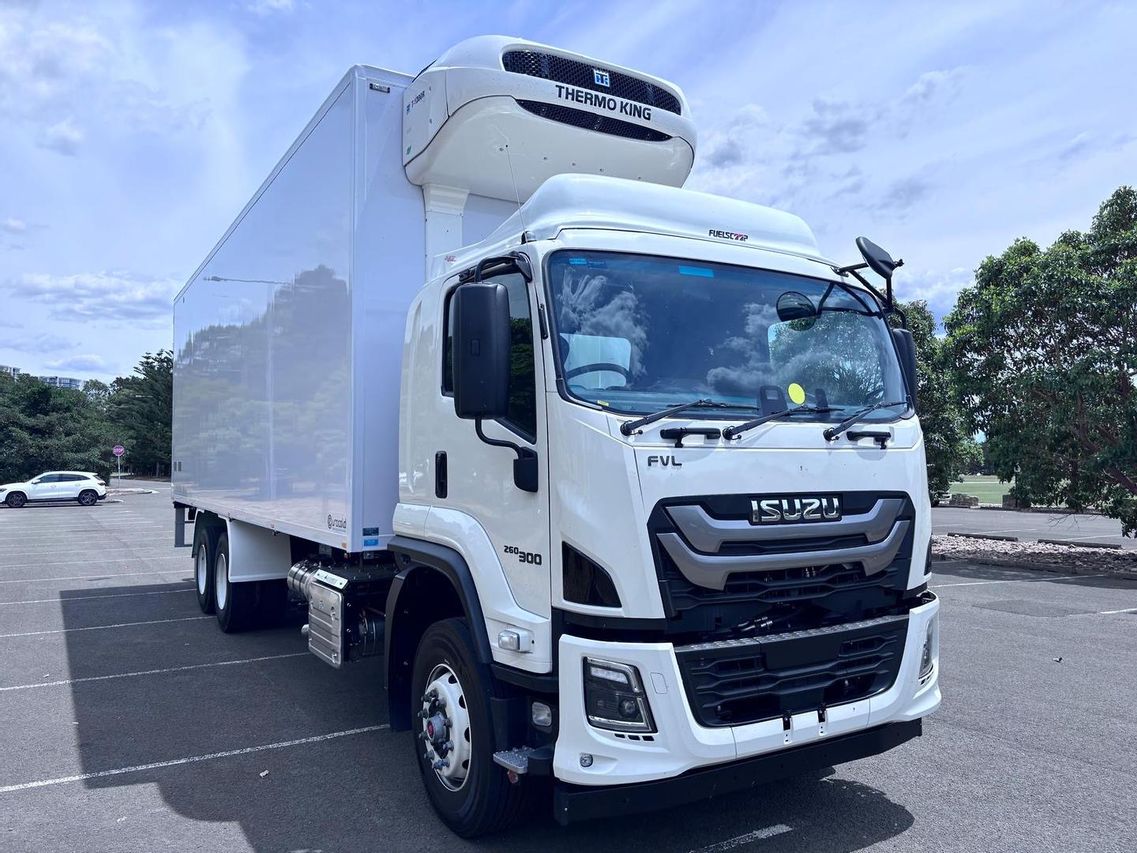

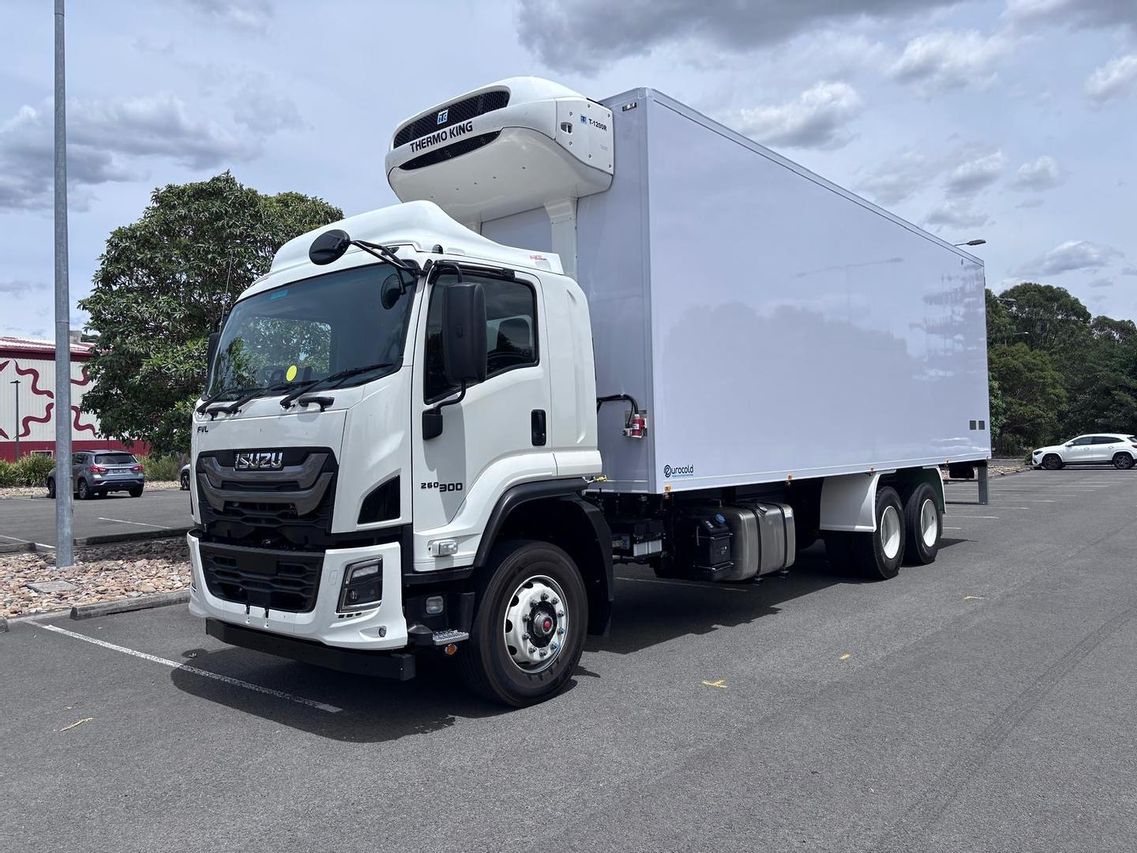

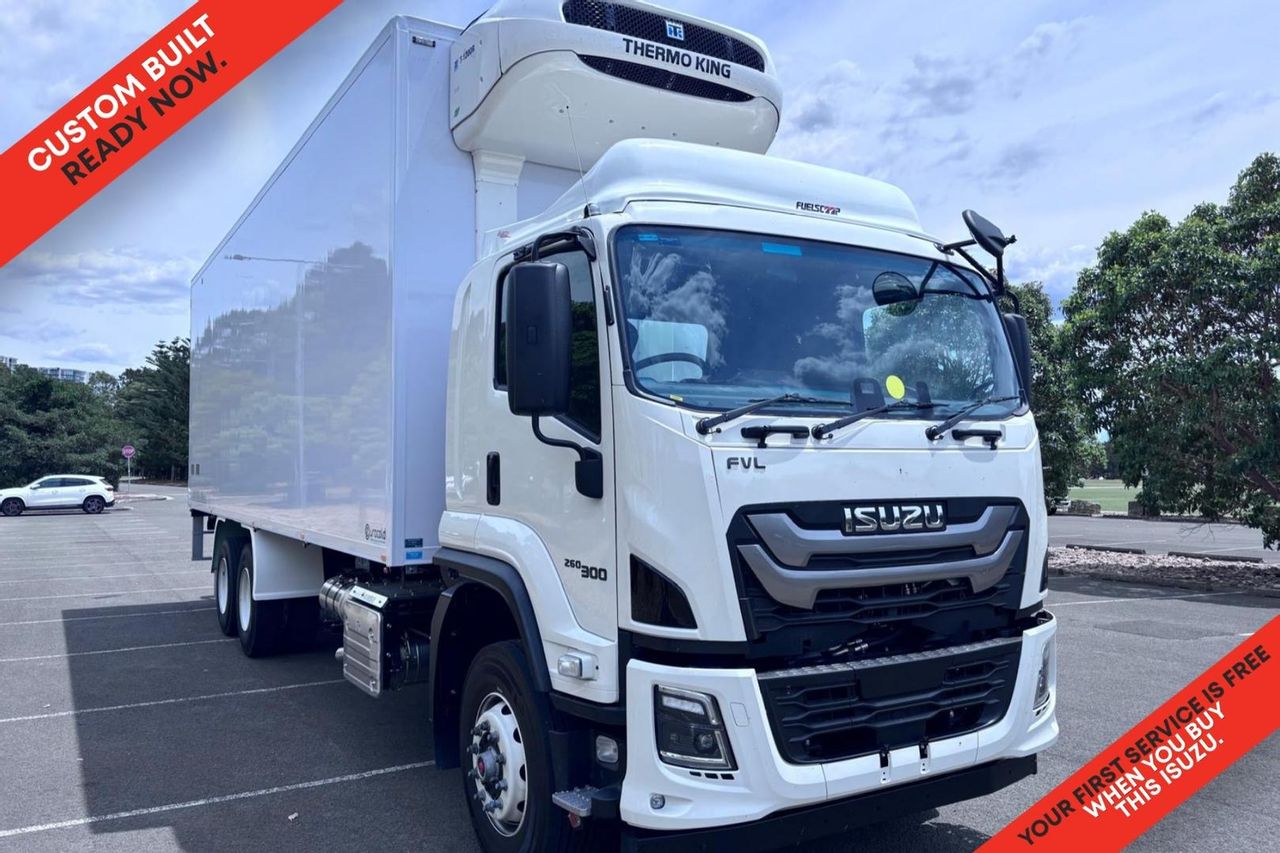

2025 Isuzu F Series FVL 260-300 AT R67 Eurocold 14 Pallet Fridge Truck

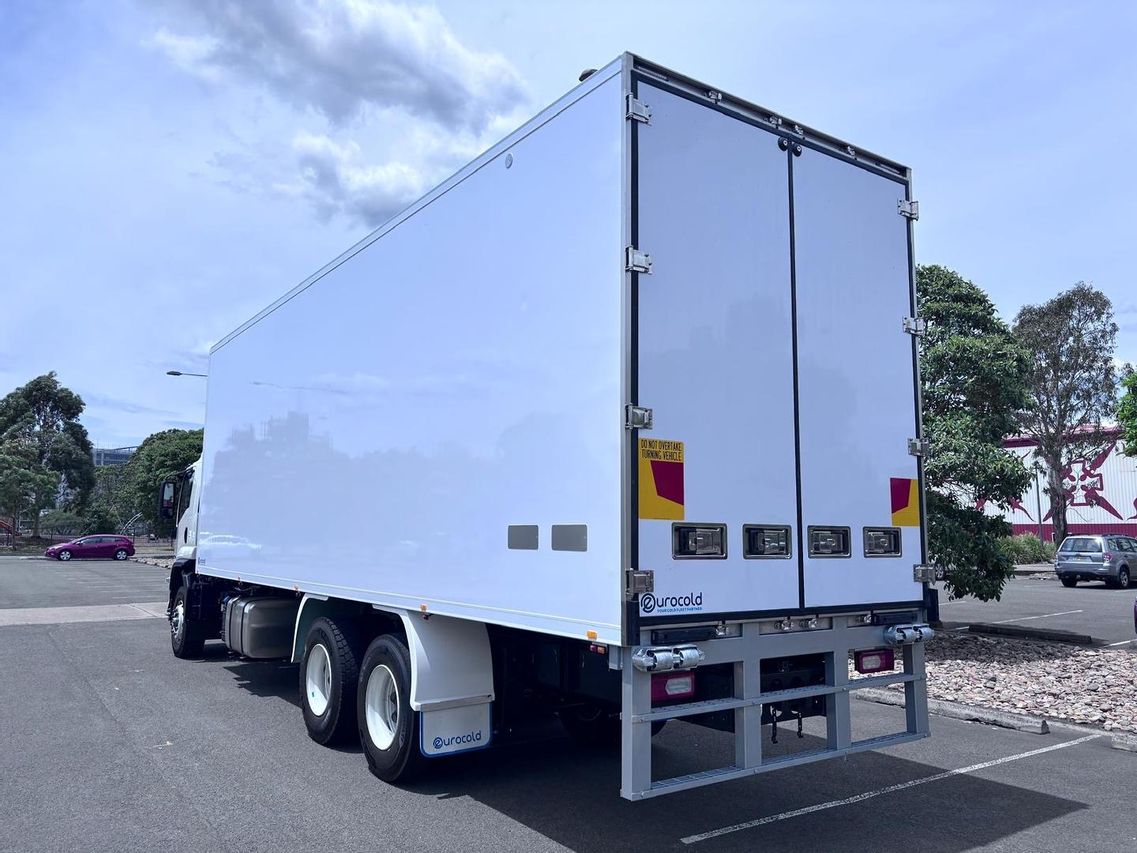

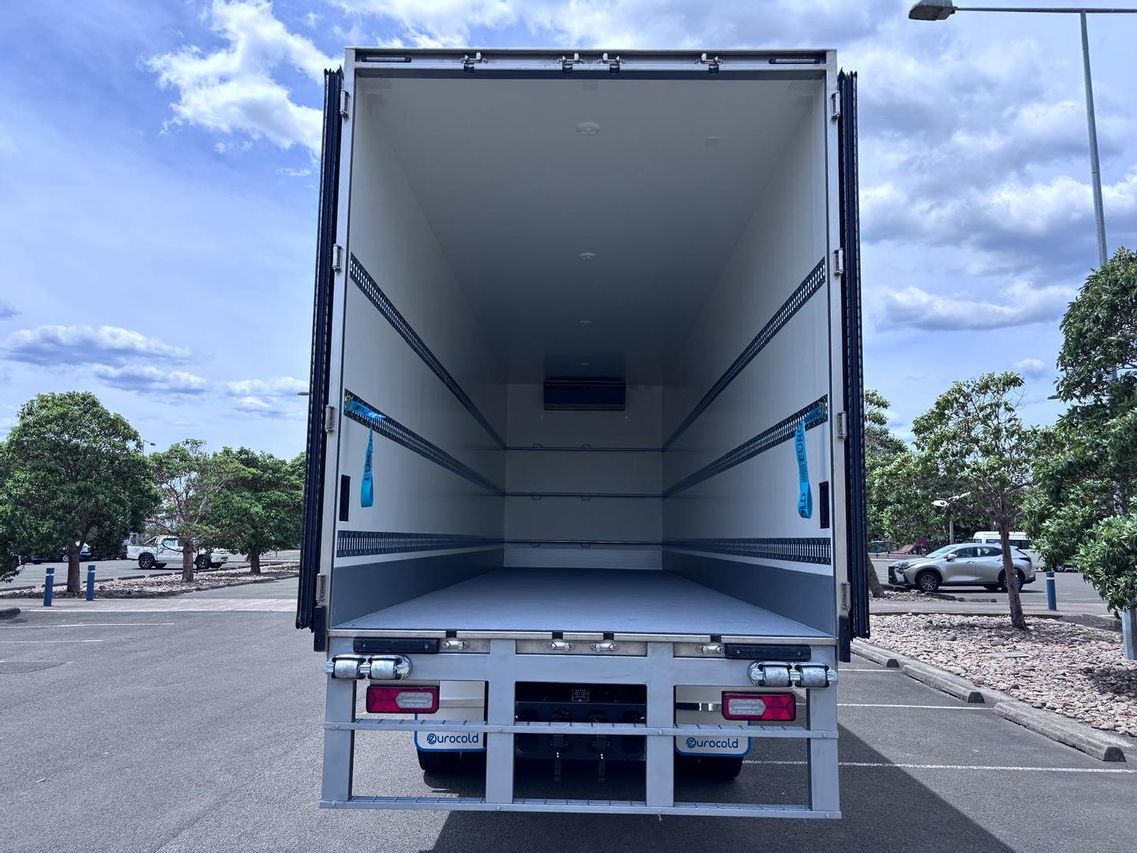

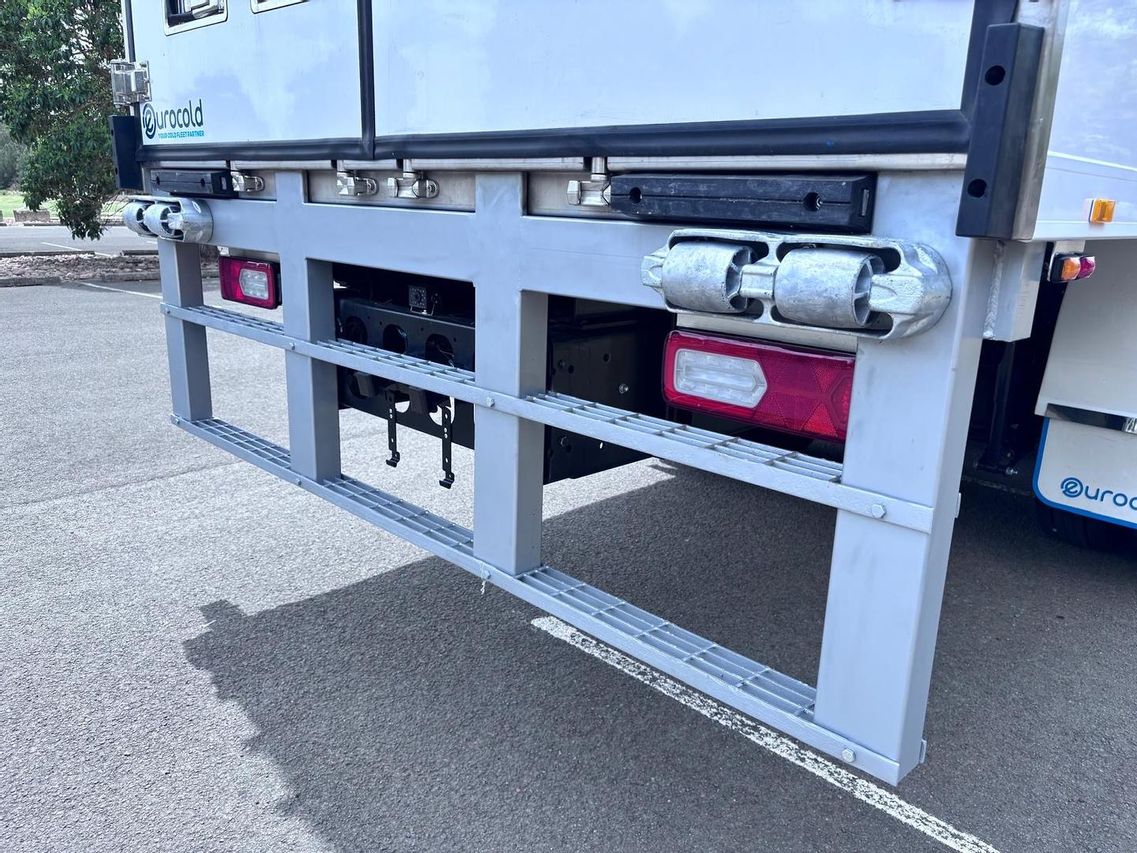

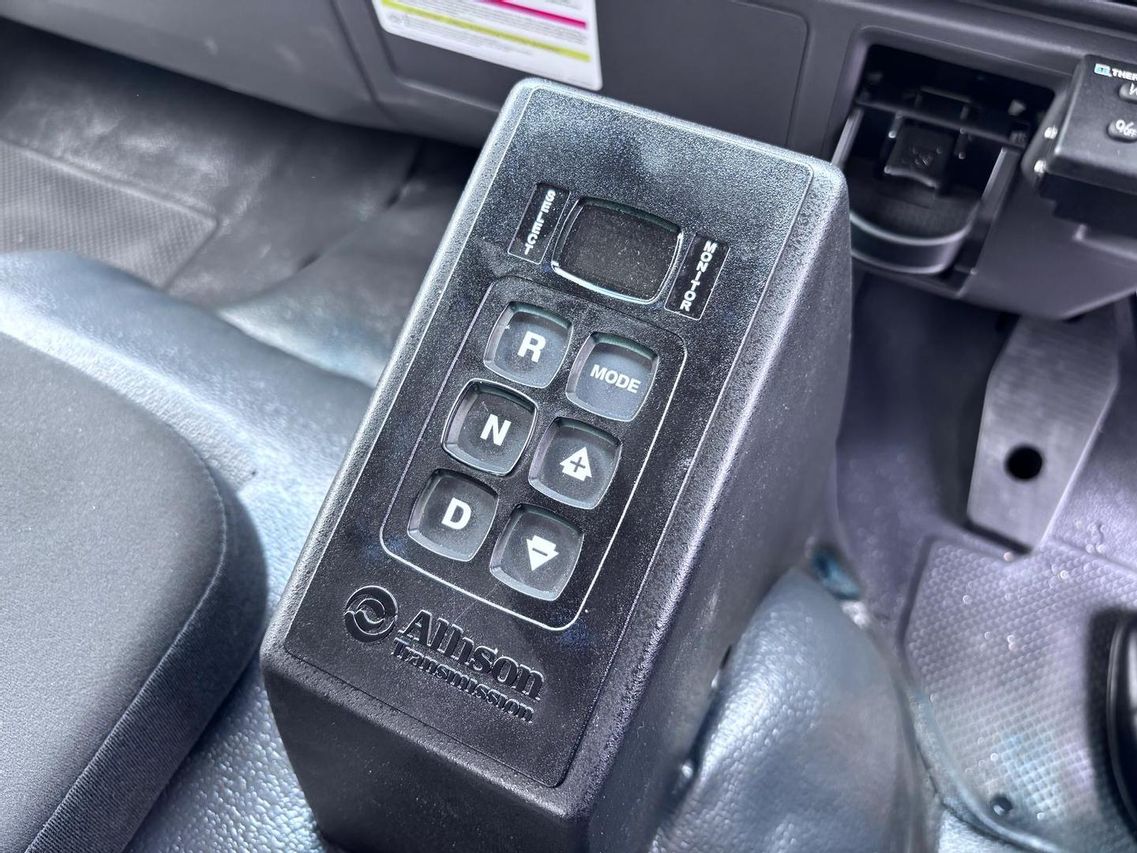

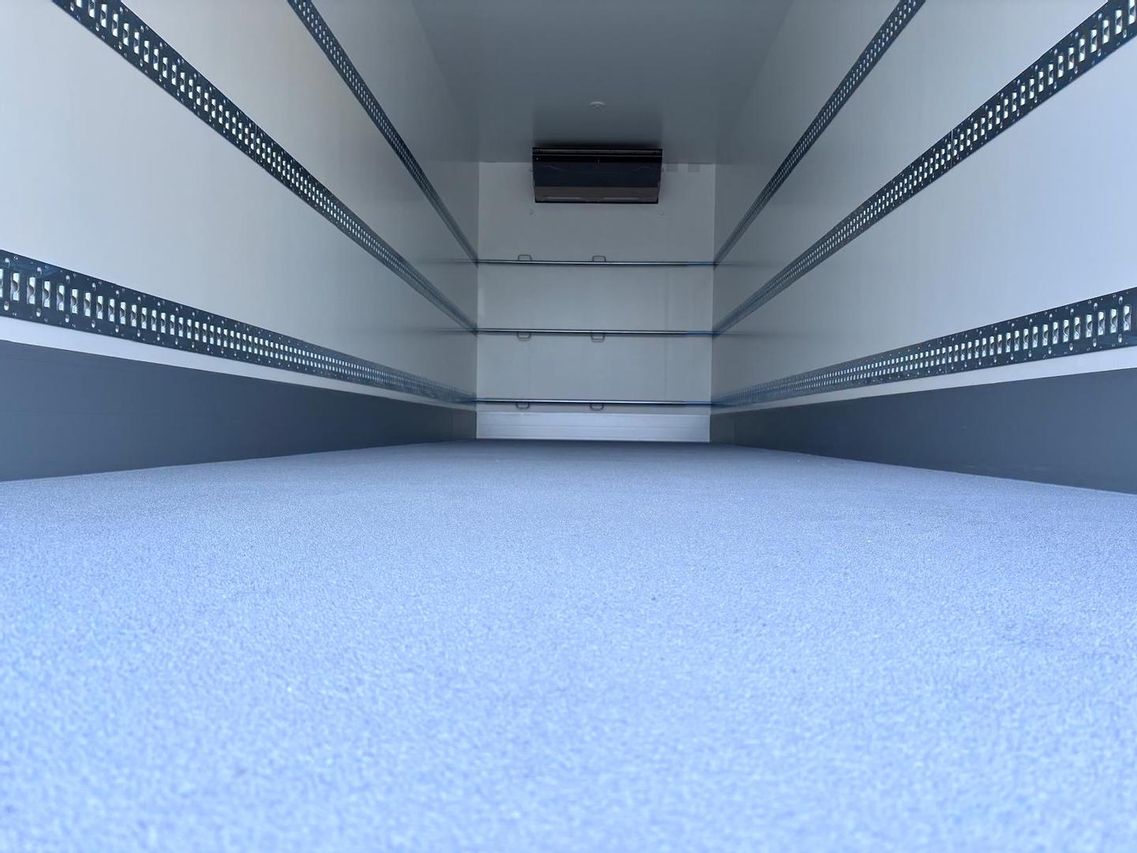

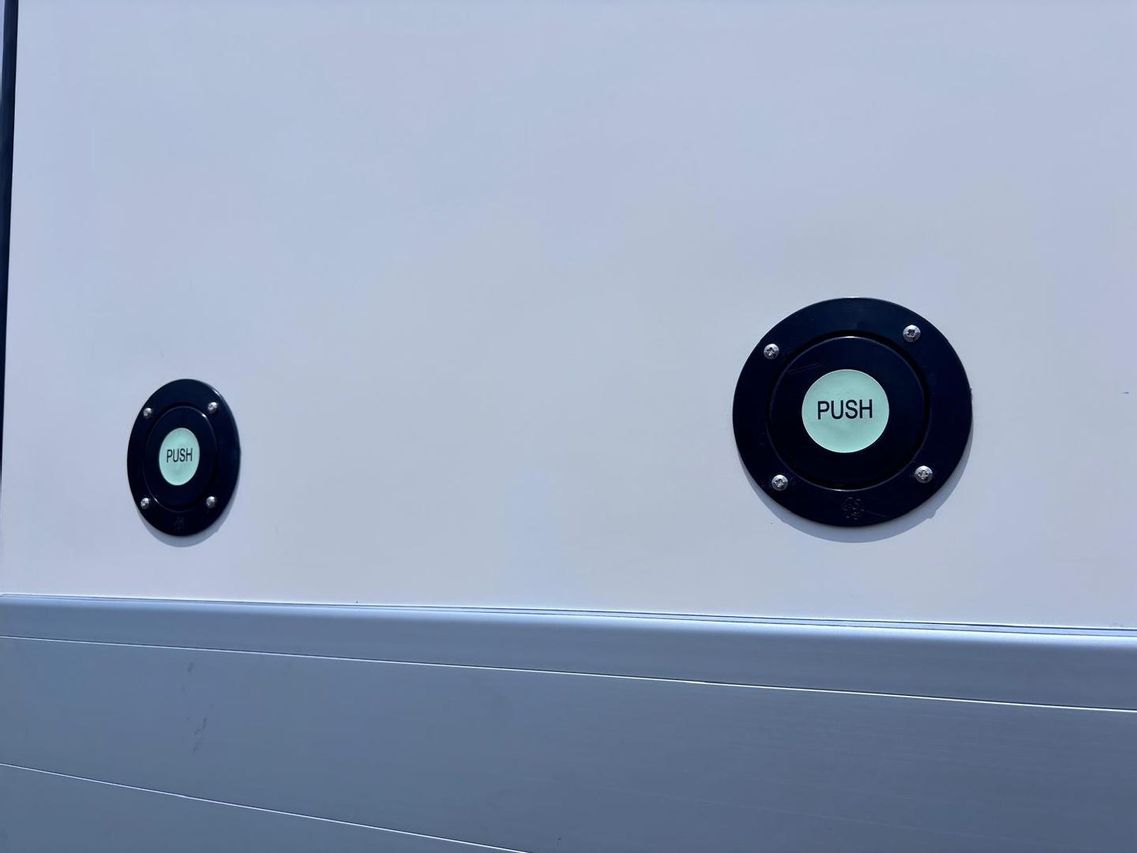

ISUZU FVL 260-300 AT R67 Heavy Duty 6x2 Cab Chassis ________________________________________ VEHICLE OVERVIEW Model: FVL 260-300 AT R67 GVM: 26,000 kg GCM: 32,000 kg Wheelbase: 6,655 mm Engine: Isuzu DB6A-TCC 6 Cylinder Turbo Diesel Power: 221 kW @ 2,200 rpm Torque: 984 Nm @ 1,000 - 2,100 rpm Transmission: Allison 3500 GEN 6 6-Speed Automatic Transmission (AT) ________________________________________ EUROCOLD BODY Body Size: 14 Pallet JUMBO Cubic Metres: 59.52 K Factor: 0.39W/(m2K) Body Weight: Approx 3,350kg External Body Dimensions: (L) 9000mm x (W) 2490mm x (H) 3000mm Internal Body Dimensions: (L) 8820mm x (W) 2410mm x (H) 2800mm Body Panel Thickness: Front & Roof: 100mm Side Panels: 40mm Rear Doors: 80mm Body External: Rear Barn Doors: 2 x 80mm rear barn doors with 285mm aluminium impact strip from the bottom, emergency release handle on the left door, left door opens first, heavy duty recessed locking system, magnetic hold back doorkeepers with impact plates forhandles. Rear Frame: Heavy-duty stainless steel. Double Rear Step: Hot Dip Galvanized Walkway grid mesh. (applicable if no tailgate is installed) Dock Protection: 2 x heavy duty docking rubber. Mudguards: White Eurocold custom fibreglass guards with Eurocold mudflaps. Trims: White Aluminium outside profiles 90x70mm and white aluminium corner caps. Door Latch and Catch: Magnetic doorkeepers. Lights: External rear LED red marker lamps, external front LED white marker lamps, amber side directional lights fitted as required, amber reflectors fitted as required Body Internal: Cargo Restraint: 3 x Galvanized binding rails (F Track) positioned at 400mm, 1100mm, and 1800mm centres. 3 x Shoring bars with D handles – easy operation. Drain Holes: 2 Drain holes with valve positioned in the front corners of the body. Lights: LED internal lights Impact Strip: 285mm Aluminium impact strip flush fitted from the top of the floor to all walls and doors. ________________________________________ FEATURES ADR 80/04 (Euro VI) Compliant Adaptive Driving Beam (ADB) Bi-LED Headlamps with Daytime Running Lamps (DRL) ECE-R29 Cab with Side Anti-Intrusion Beams ISRI 6860/875 NTS2 Air Suspension Driver's Seat Engine Compression Brake (I-Brake) ________________________________________ CHASSIS Front Axle Capacity: 7,300 kg Rear Axle Capacity: 20,000 kg Fuel Tank: 400 L Aluminium AdBlue Tank: 65 L High-Density Polyethylene Front Axle Tyres: 315/70R22.5 156/150L Michelin X Multi Z2 Drive Axle Tyres: 11R22.5 148/145L Michelin X Multi D+ Lazy Axle Tyres: 11R22.5 148/145L Michelin X Multi Z2 ________________________________________ CABIN Automatic Climate Control ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation 10.1" High Definition Touchscreen Truck Tailored GPS Navigation with Live Traffic and Map Content Updates Android Auto & Apple CarPlay Compatible Wi Fi Connectivity Bi LED Headlamps with Daytime Running Lamps (DRL) LED Front Fog Lamps LED Tail Lamps Reverse Alarm ________________________________________ WARRANTY & SERVICE Chassis Warranty: 6 Years / 500,000 km / 10,000 Engine Hours Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First) Roadside Assist: 6 Years / 24/7 Unlimited km ________________________________________ Thermo King T1200 R Refrigerated Unit REFRIGERATED UNIT SPECIFICATIONS: 400V electric Standby, 3 Phase Quite Operation Low Fuel Consumption Thermostat adjustable Control - In Cab command Cabin ON/OFF Control-integrated alarm codes Ozone friendly R404 A – high/low temperature refrigerant Defrost Manual / Automatic - smart time defrost Hot gas defrost – extra heat system (quick defrost) Unit Weight 518kg
