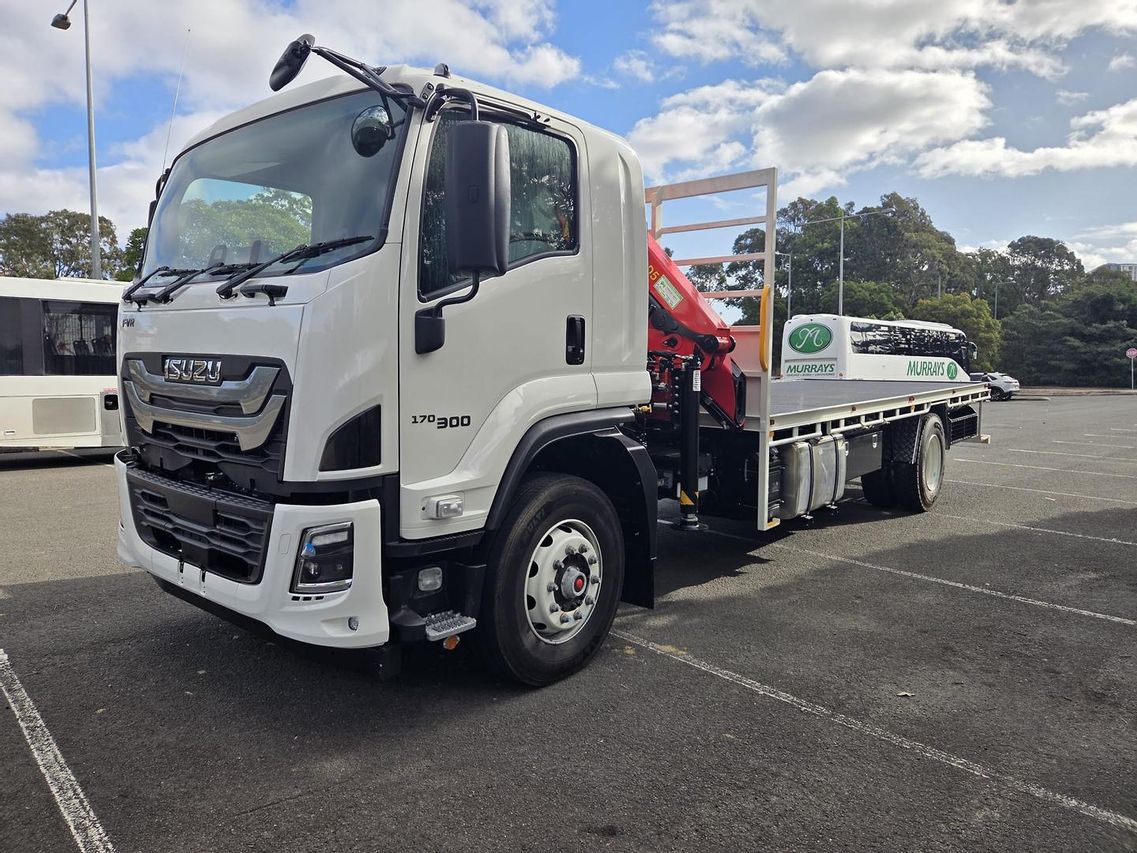

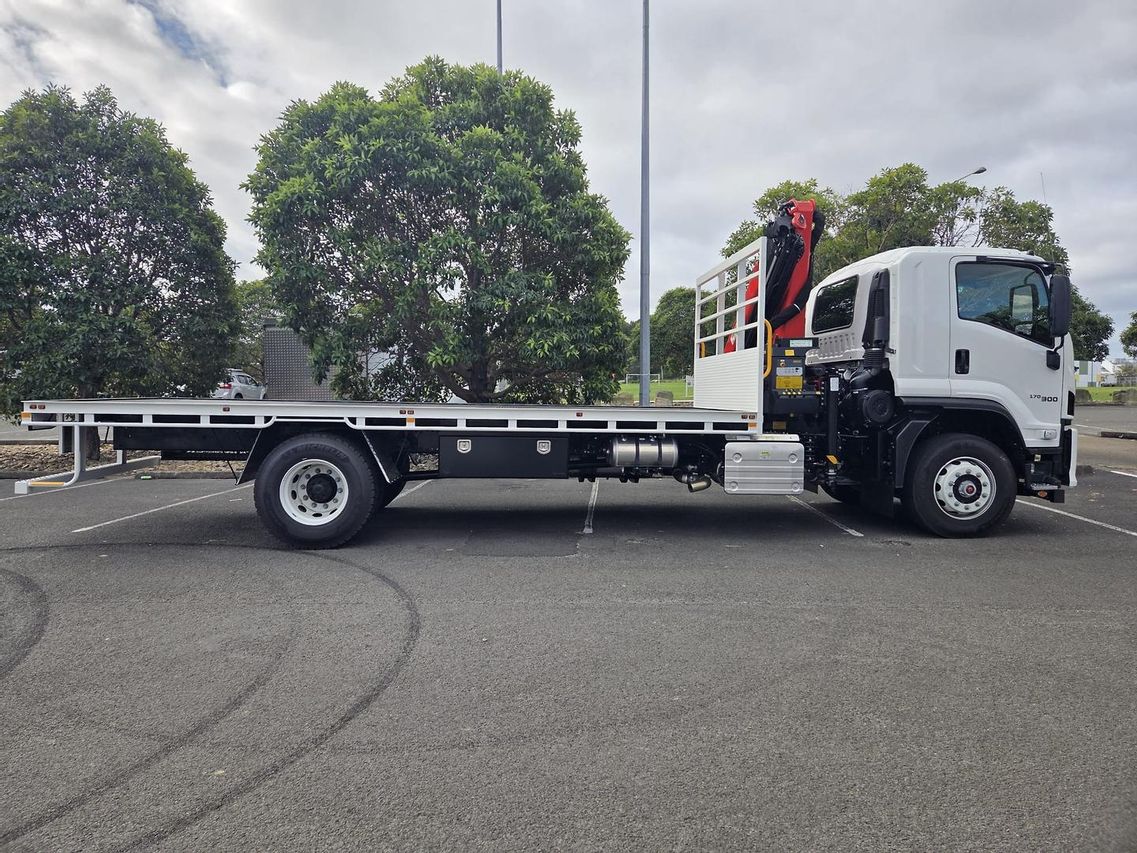

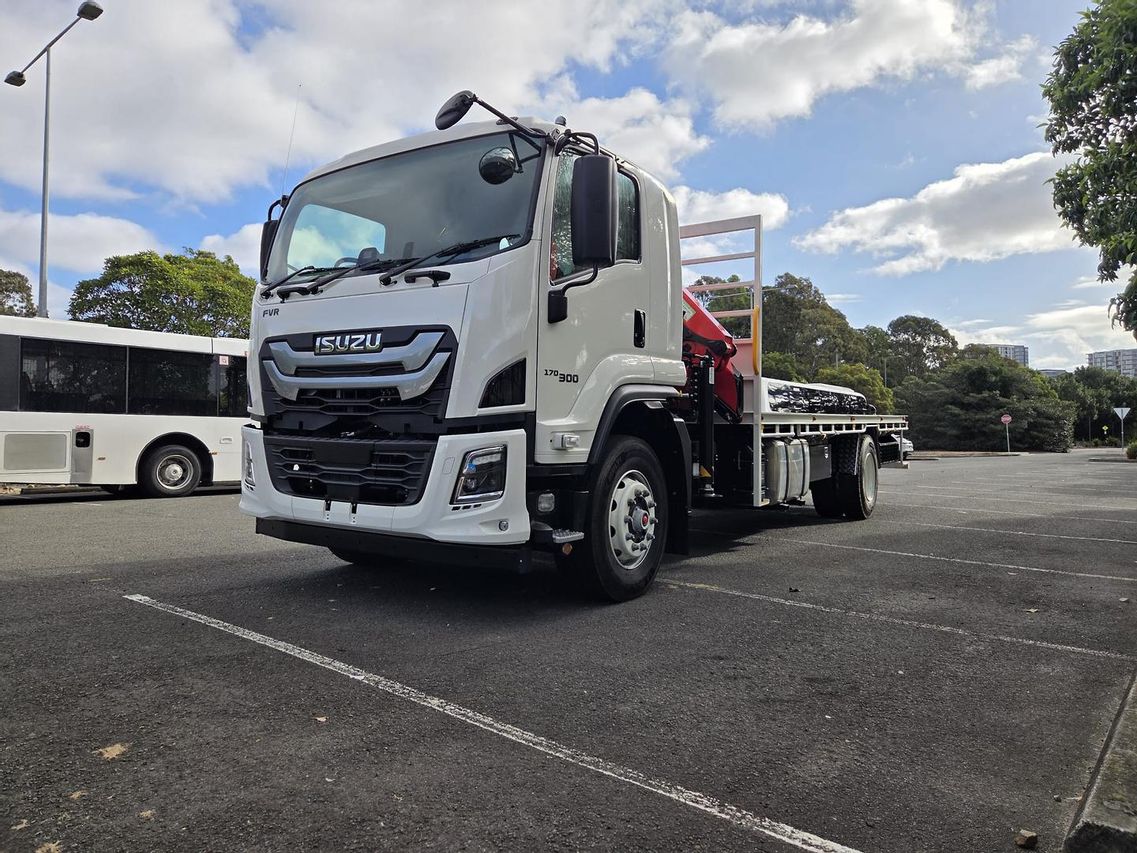

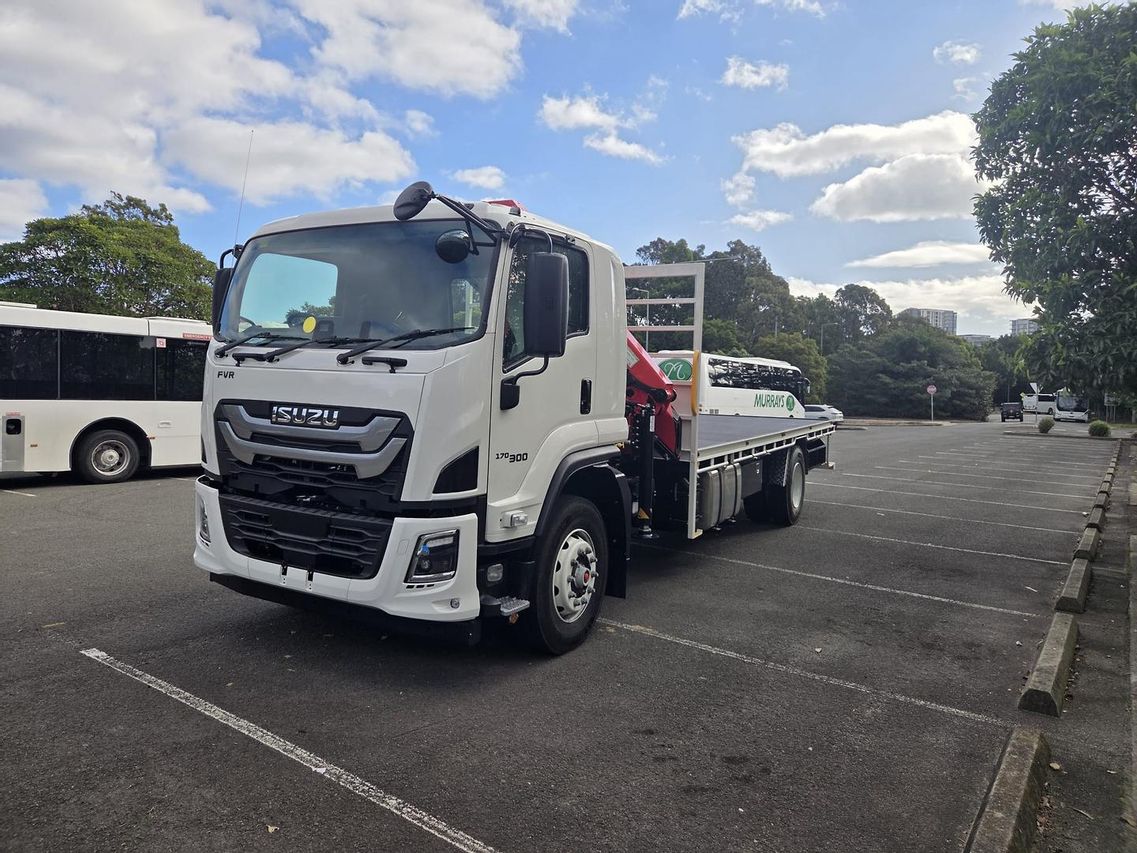

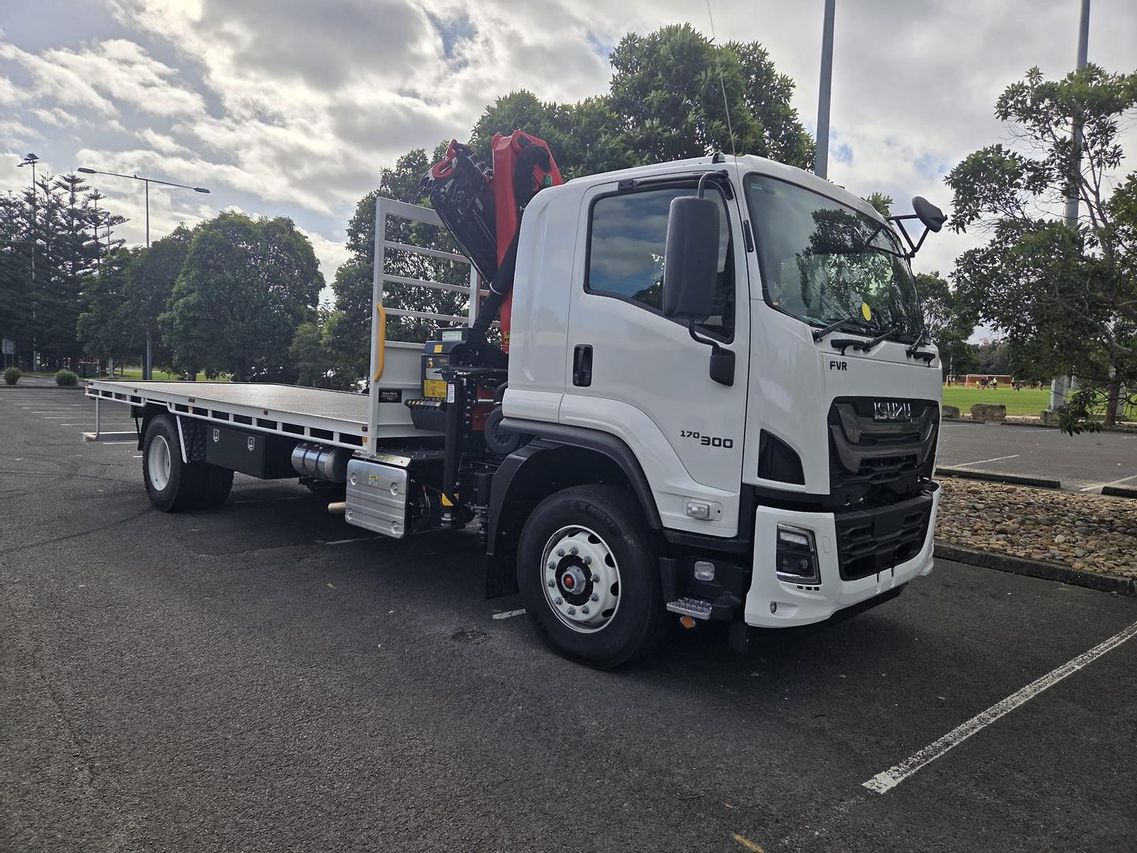

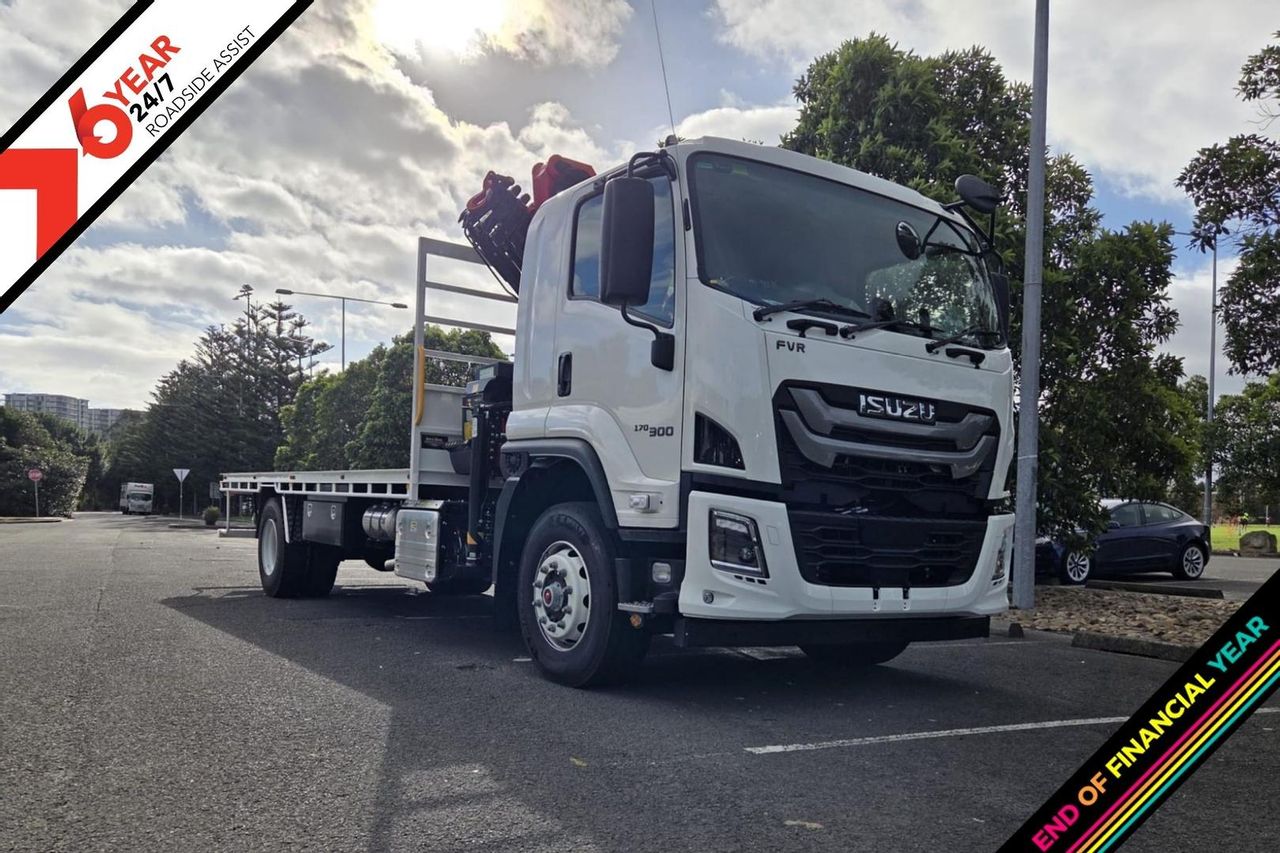

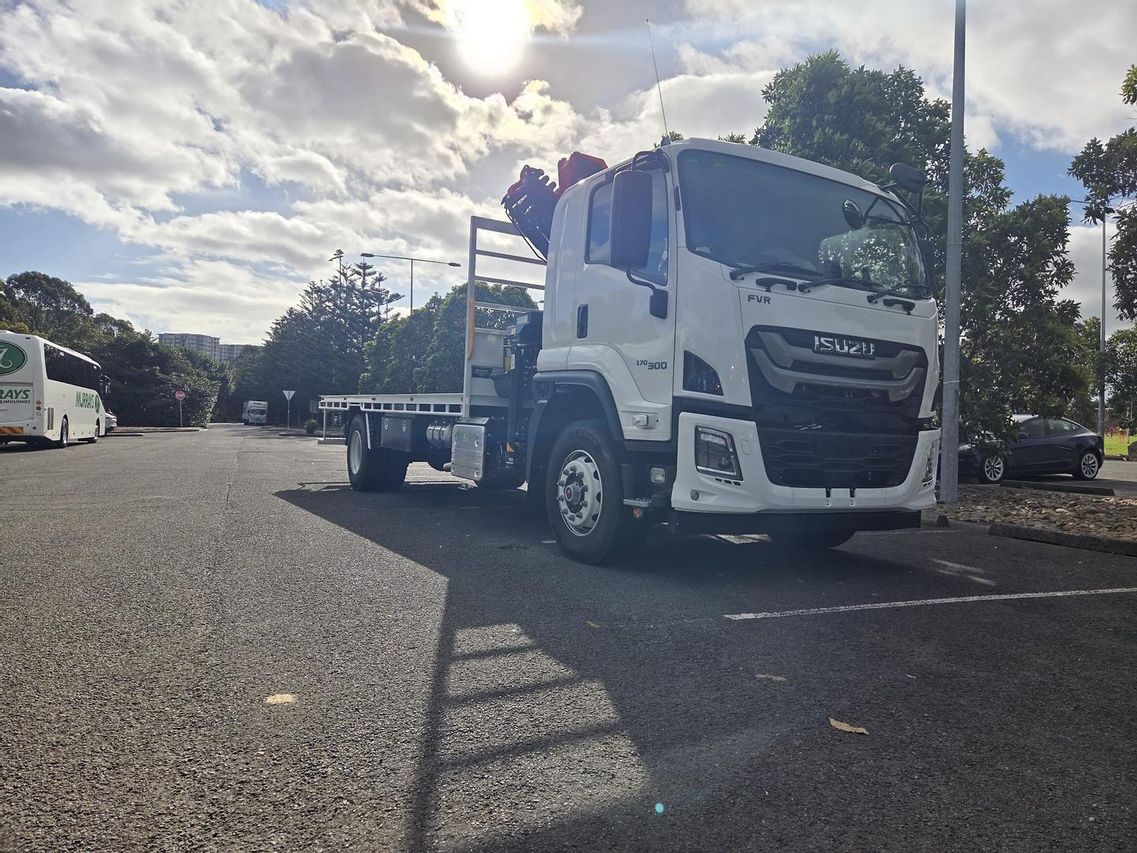

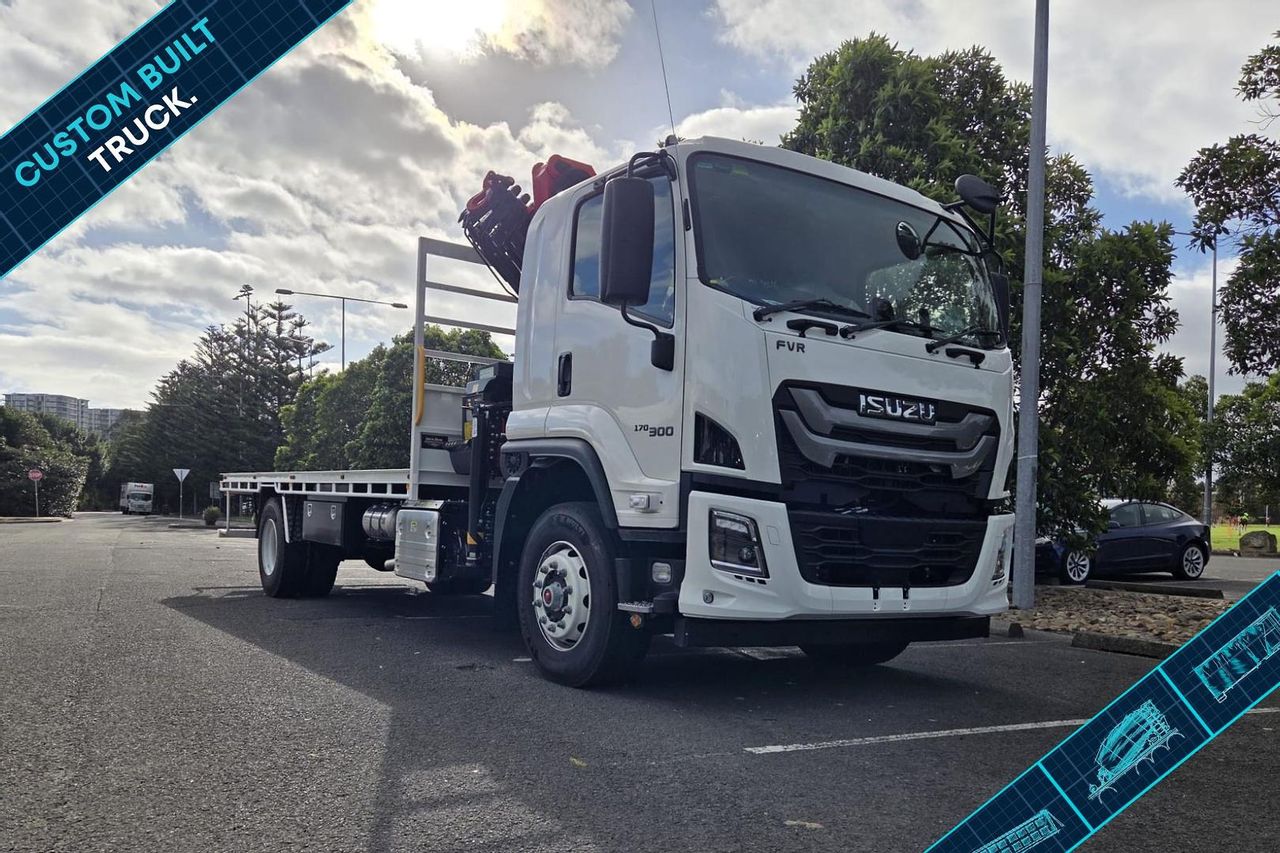

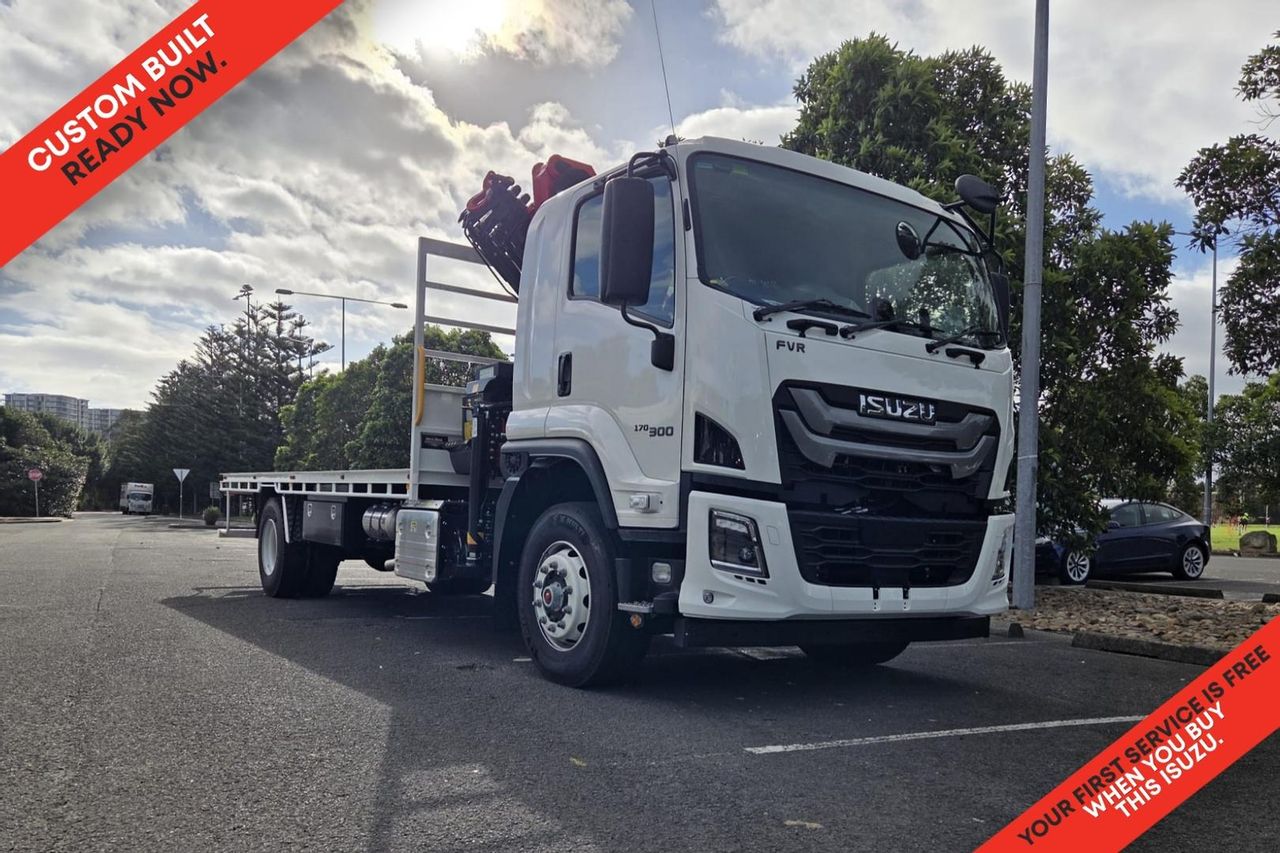

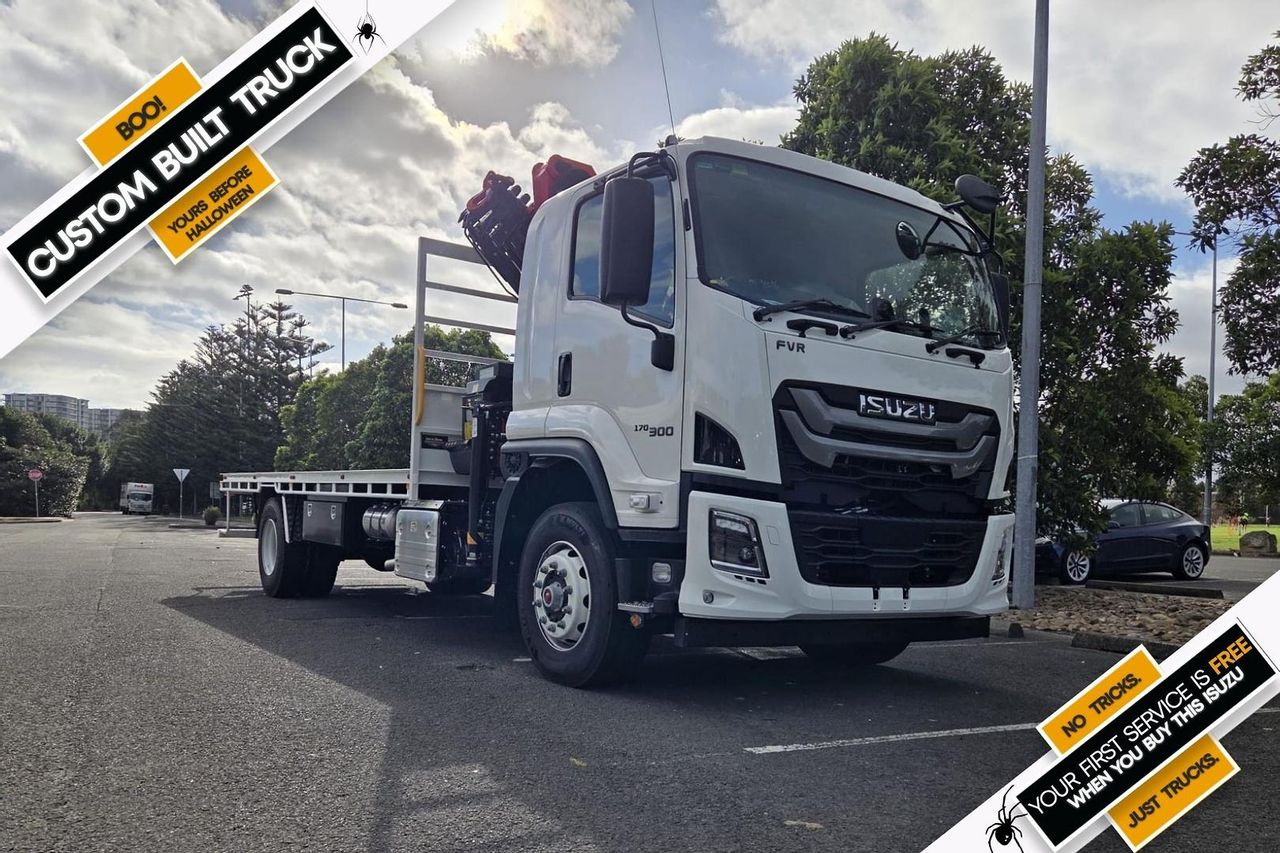

2025 Isuzu F Series FVR 170-300 AT R60 Palfinger Front Mount Crane10 pallet Tabletop

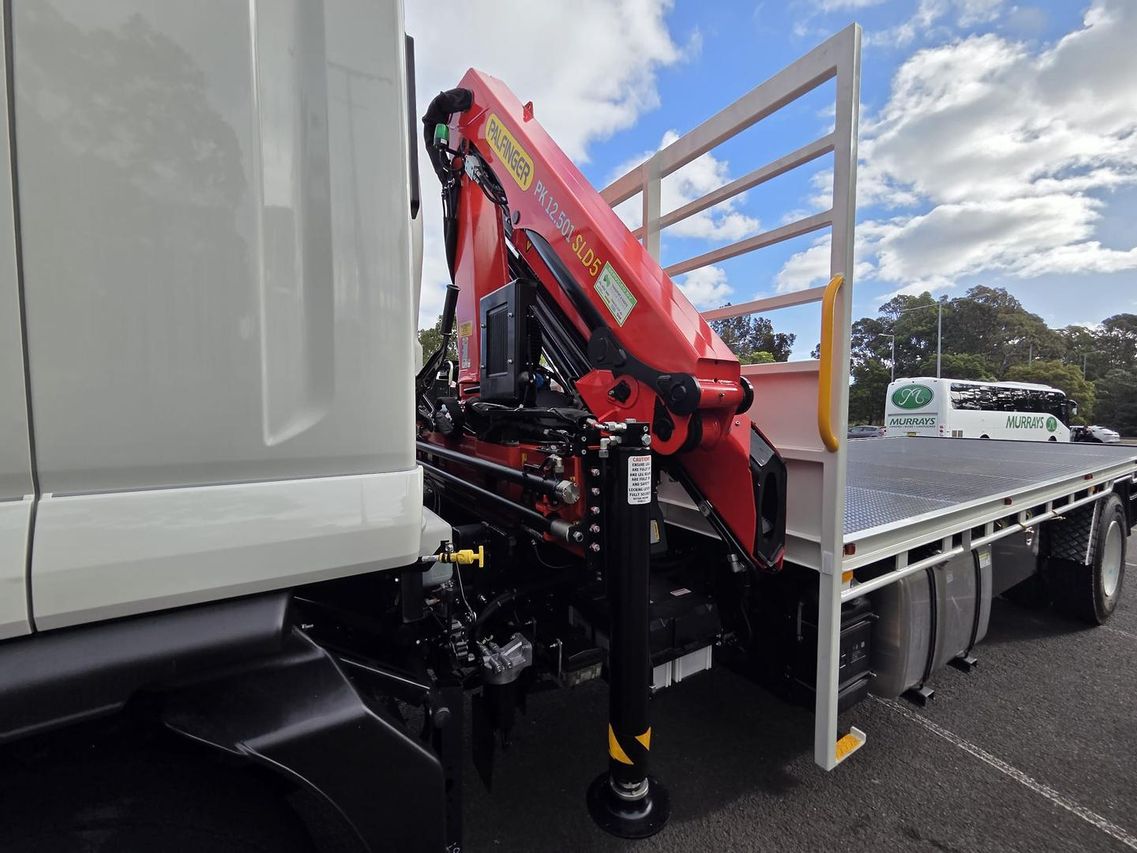

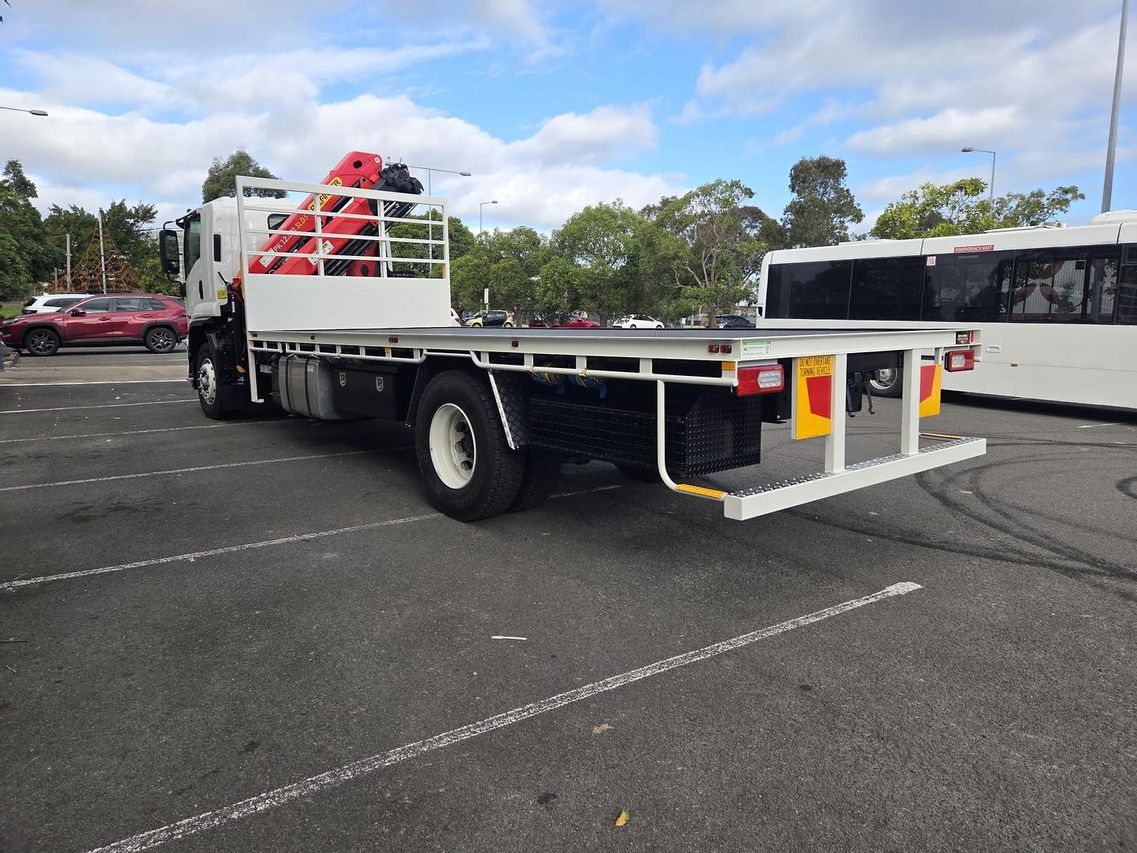

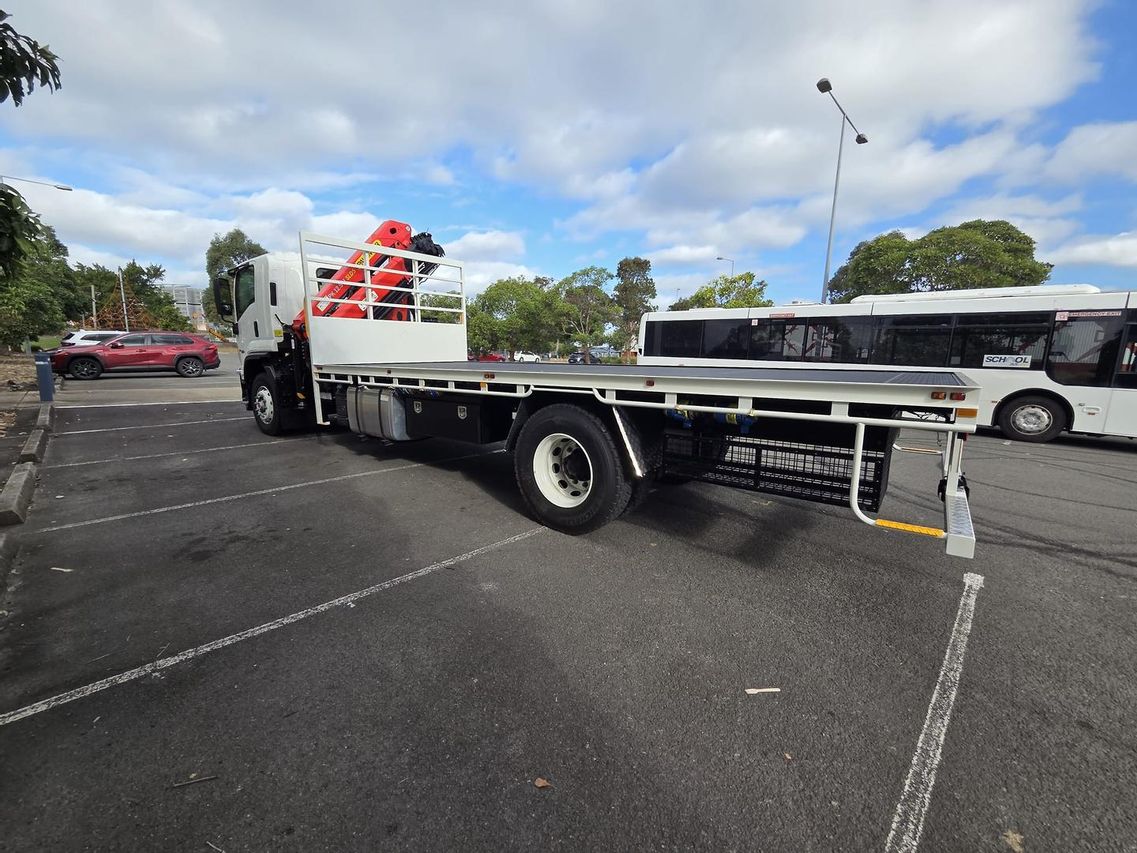

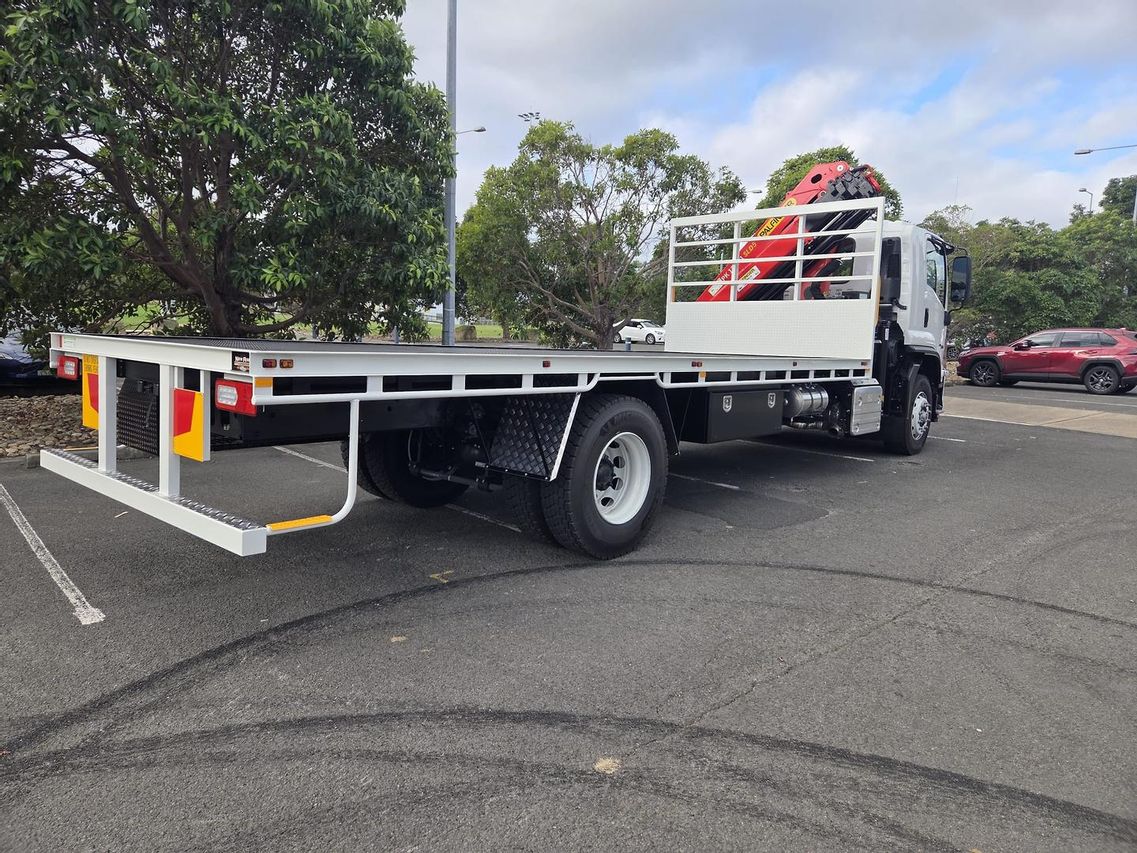

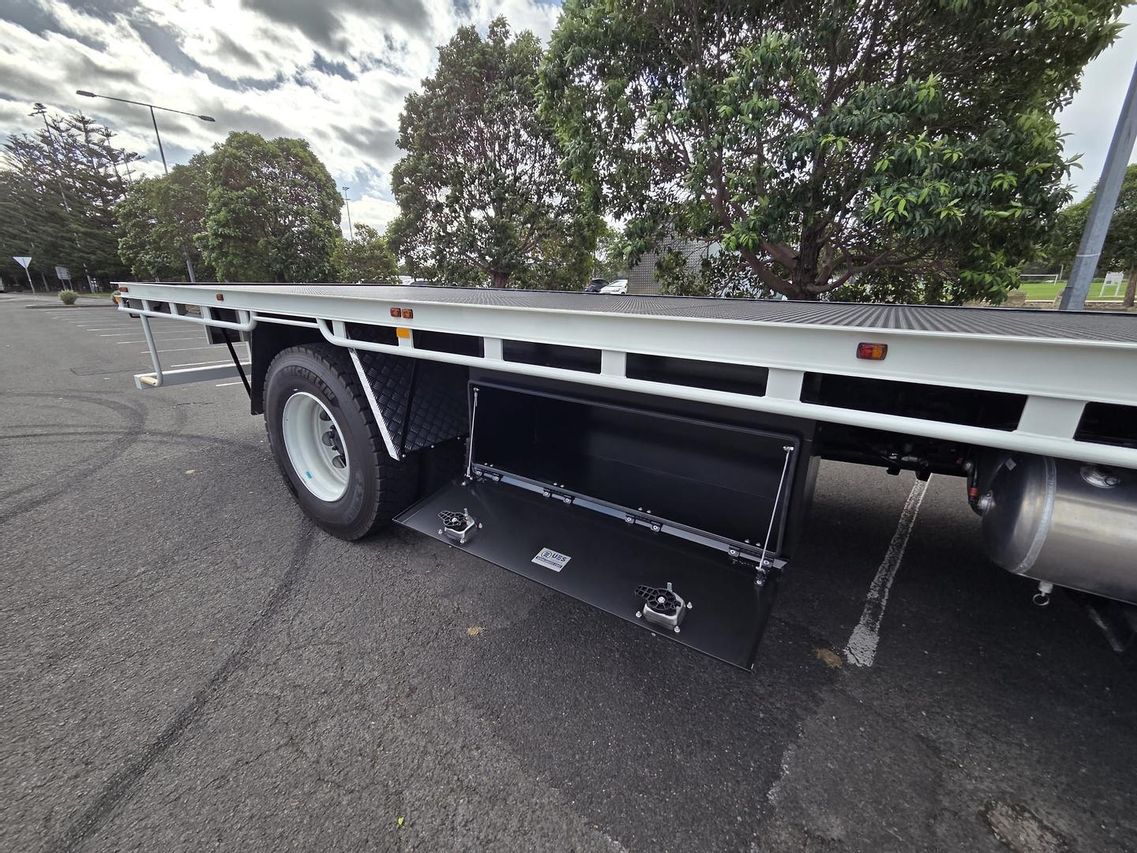

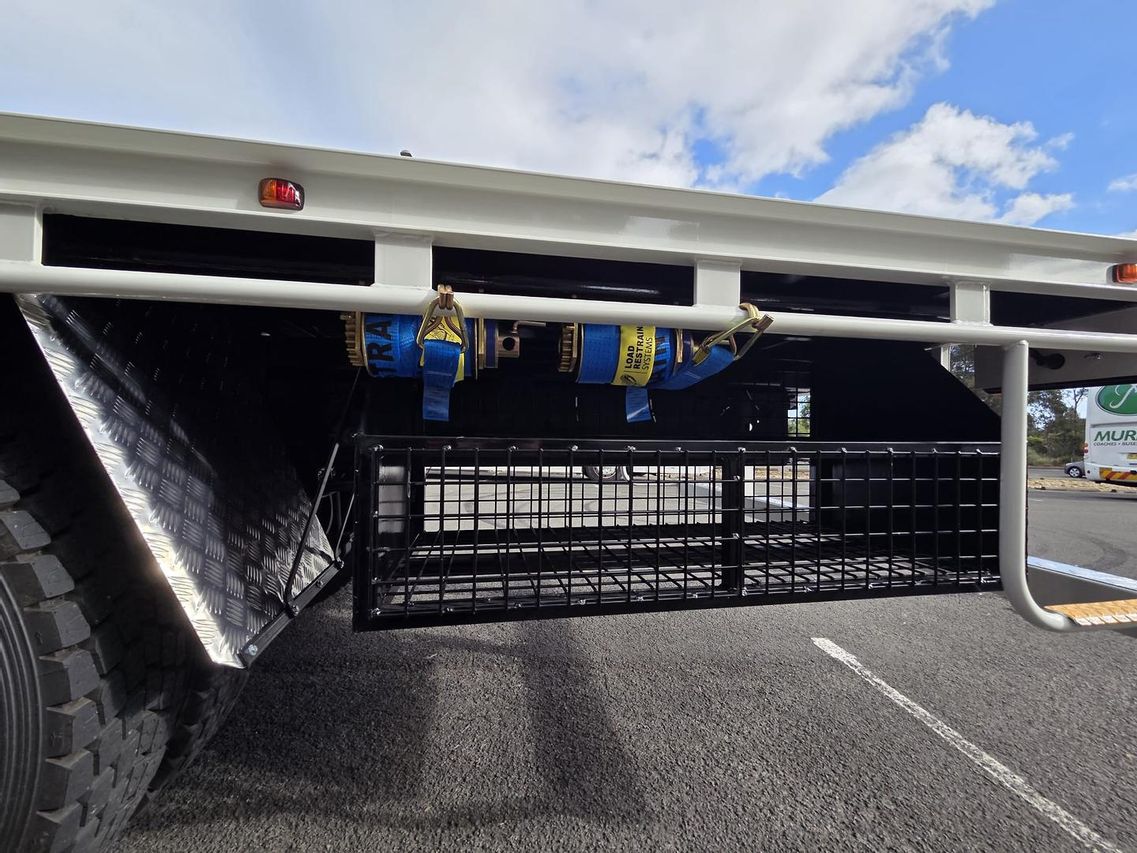

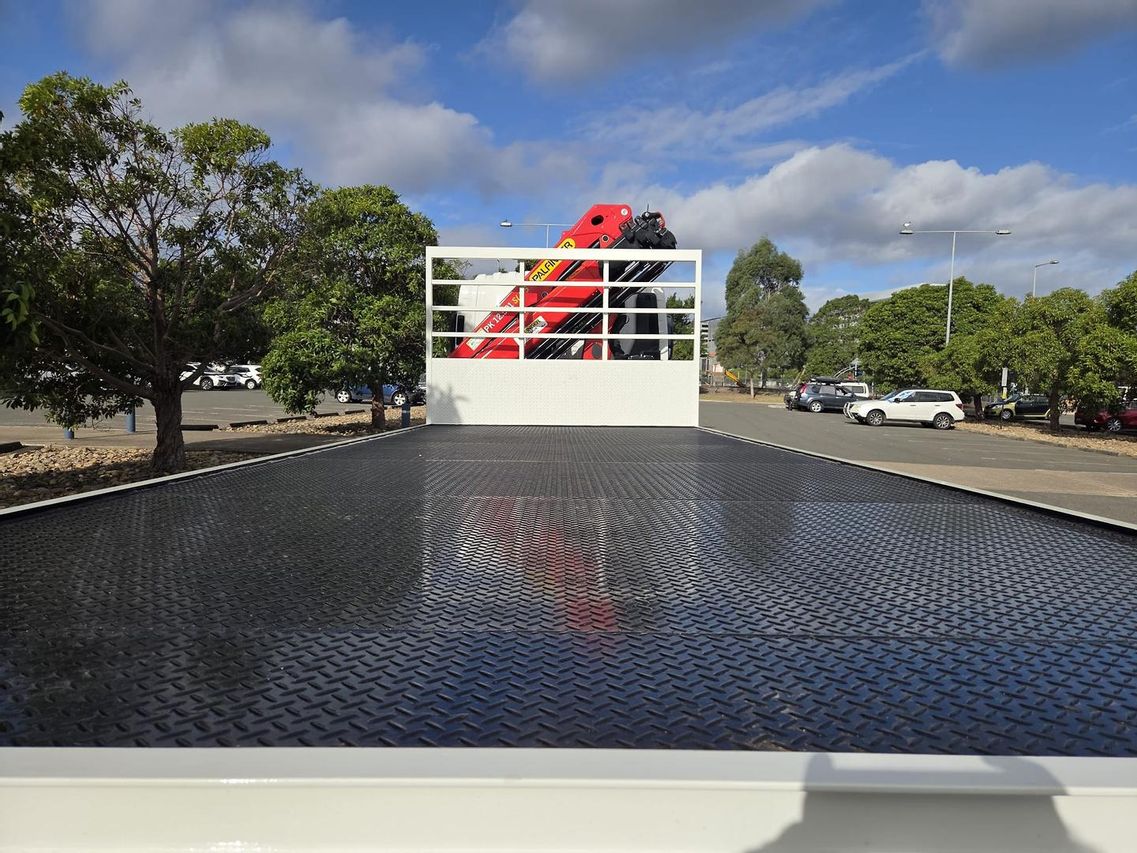

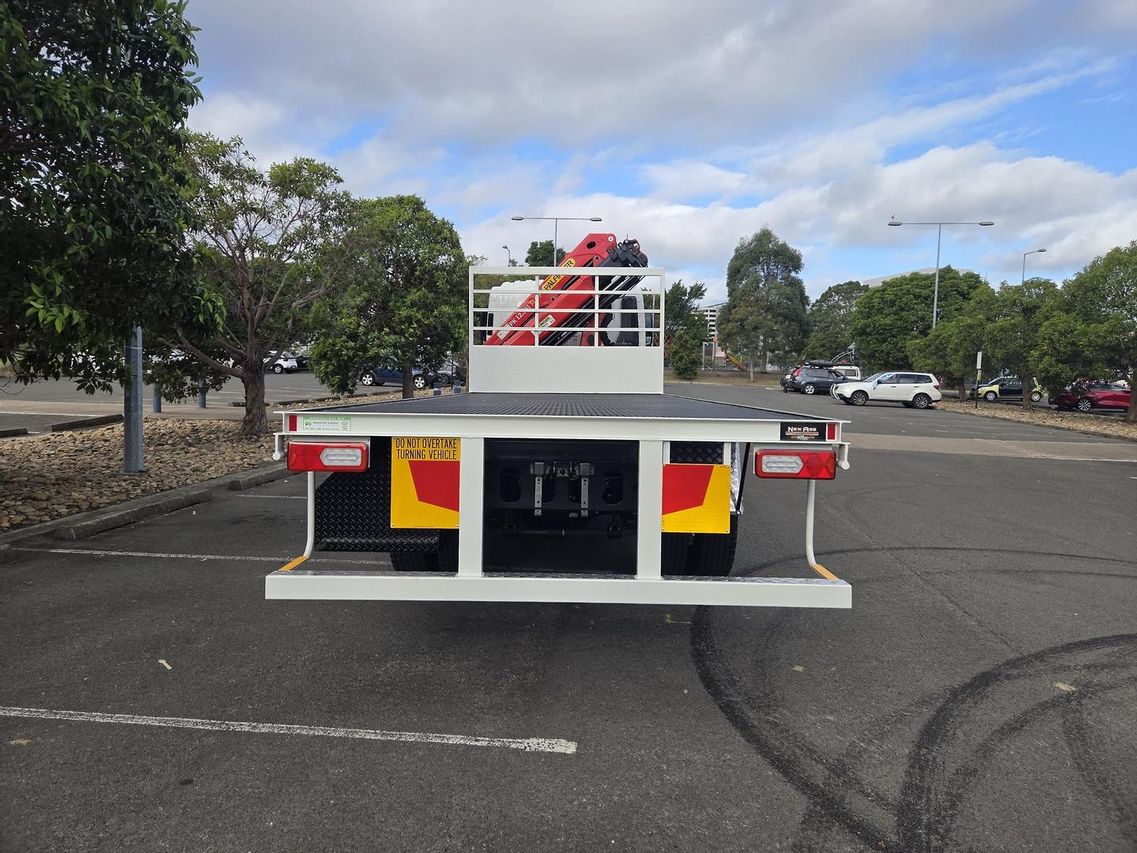

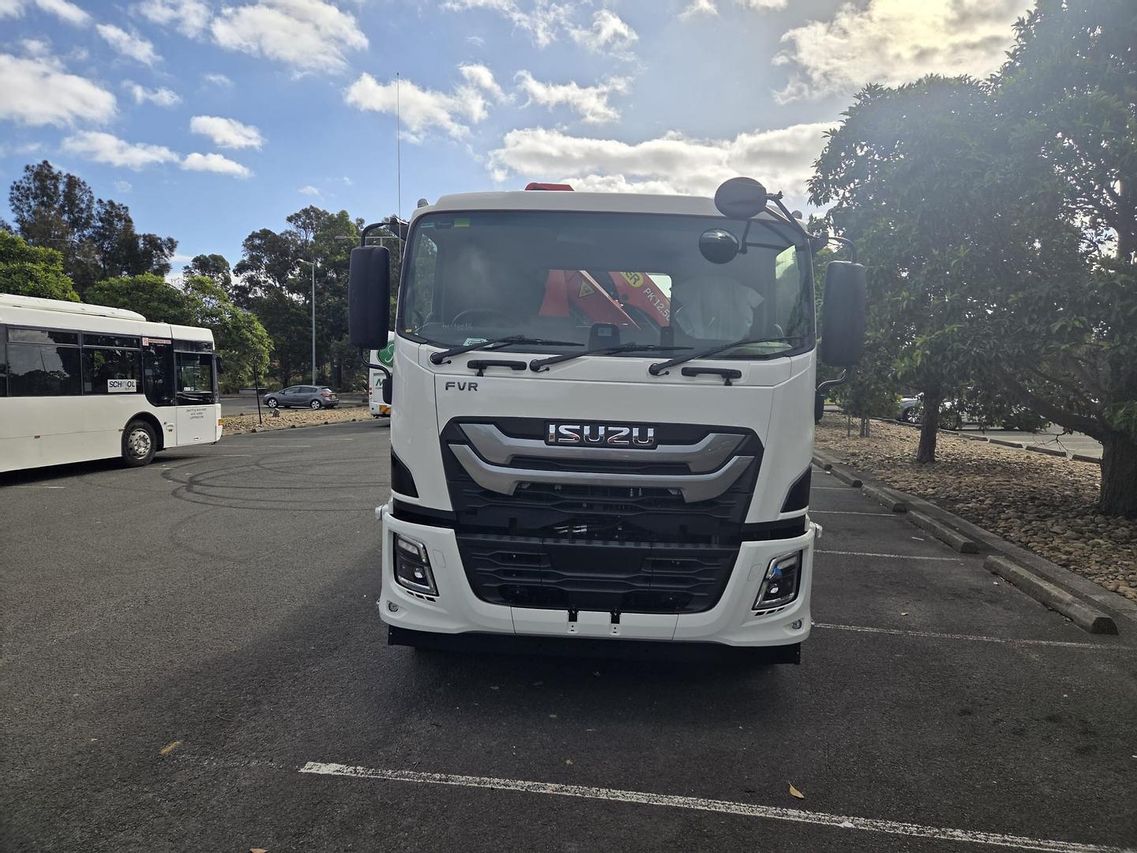

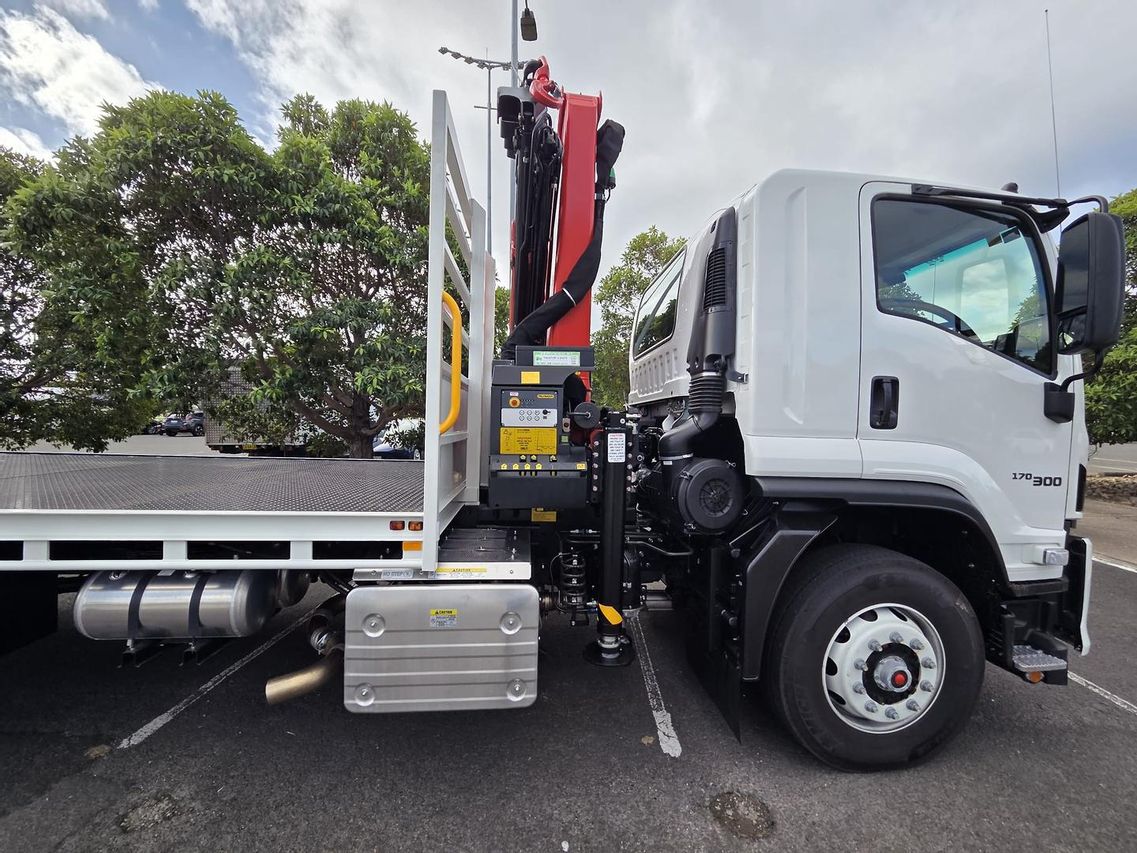

ISUZU FVR 170-260 AT R60 Heavy Duty Cab Chassis ________________________________________ VEHICLE OVERVIEW Model: FVR 170-260 AT R60 GVM: 17,000 kg GCM: 32,000 kg Wheelbase: 6,000 mm Engine: Isuzu DB6A-TCN 6 Cylinder Turbo Diesel Power: 191 kW @ 2,070 rpm Torque: 883 Nm @ 1,000 - 2,070 rpm Transmission: Allison 3000 GEN 6 6-Speed Automatic Transmission (AT) ________________________________________ PALFINGER PK 12.501 SLD 5 Extension C Front Mount Crane Lifts 2650kg @4m Lifts 1700kg @5.9m Lifts 1240Kg @7.8m Lifts 770kg @11.9m Make an enquiry to discuss this crane truck further ________________________________________ NEW AGE TRUCK BODIES Heavy duty steel tray 6500mm overall length 2495mm overall width 10 pallet space capacity. 5mm steel chequer plate floor, sheets painted black with 20mm combing. 100mm channel main runners. 75 x 40mm channel cross bearers welded to the main runners. 100 x 50mm channel side combing rails. Heavy duty Rope rail pipe to full length of body on each side of the body 75mm below the combing rails. Pipe or RHS stirrup steps with chequer plate foot platforms on each side of the body at the front – front & rear. 2 x underbody toolboxes. 5 x Underbody sling winches. Heavy Duty Headboard. Heavy duty RHS steel constructed frame 600mm high 3mm steel chequer plate kick late at the base of the headboard Grab handles located on the headboard for climbing access with ladder style steps, Aluminium propeller plate mudguards with steel supports each side of the rear wheels Rear step. All compulsory mudguards, reflectors, marker plates, etc. Engineers certificate. ________________________________________ FEATURES ADR 80/04 (Euro VI) Compliant Adaptive Driving Beam (ADB) Bi-LED Headlamps with Daytime Running Lamps (DRL) ECE-R29 Cab with Side Anti-Intrusion Beams ISRI 6860/875 NTS2 Air Suspension Driver's Seat Engine Compression Brake (I-Brake) ________________________________________ CHASSIS Front Axle Capacity: 7,300 kg Rear Axle Capacity: 11,000 kg Fuel Tank: 200 L Steel AdBlue Tank: 65 L High-Density Polyethylene Front Axle Tyres: 315/70R22.5 156/150L Michelin X Multi Z2 Rear Axle Tyres: 275/70R22.5 148/145M Michelin X Multi Z ________________________________________ CABIN Automatic Climate Control ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation 10.1" High Definition Touchscreen Truck Tailored GPS Navigation with Live Traffic and Map Content Updates Android Auto & Apple CarPlay Compatible Wi Fi Connectivity Bi LED Headlamps with Daytime Running Lamps (DRL) LED Front Fog Lamps LED Tail Lamps Reverse Alarm ________________________________________ WARRANTY & SERVICE Chassis Warranty: 6 Years / 500,000 km / 10,000 Engine Hours Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First) Roadside Assist: 6 Years / 24/7 Unlimited km ________________________________________ We are one of Sydney’s most convenient and trusted truck dealerships, located just 10 minutes from Sydney Airport and only 400 metres from Wolli Creek train station. We make buying, selling, and servicing your truck simple. If you're looking to sell, we offer free truck valuations with an onsite valuer / buyer providing obligation-free market appraisals—receive a competitive offer based on current market data. As an authorised Isuzu dealer, we’ve partnered with Qantas Business Rewards so your business can earn Qantas Points when purchasing Isuzu truck parts and accessories. We also offer Isuzu Service Agreements at the time of your truck purchase, helping you turn servicing into predictable, manageable costs. Plus, when you purchase a new Isuzu truck, your first service is free. To keep your business moving, our workshop provides after-hours servicing until 7pm, giving you more uptime and less downtime. IS THIS NOT THE PERFECT TRUCK FOR YOU? We keep a range of trucks in stock ready to work, available now for delivery. Send an enquiry so we can find what you need. NEED SOMETHING CUSTOM? We have trucks ready to build - so we can craft a truck exactly to what your business requires. Send an enquiry so we can build what you need. We are Isuzu experts and are confident we can find the right truck for you and your business.
