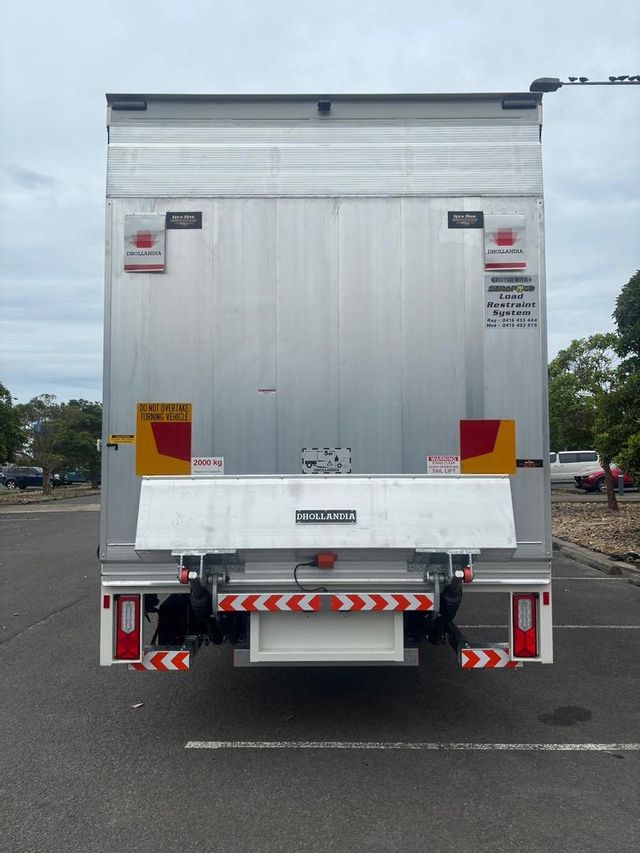

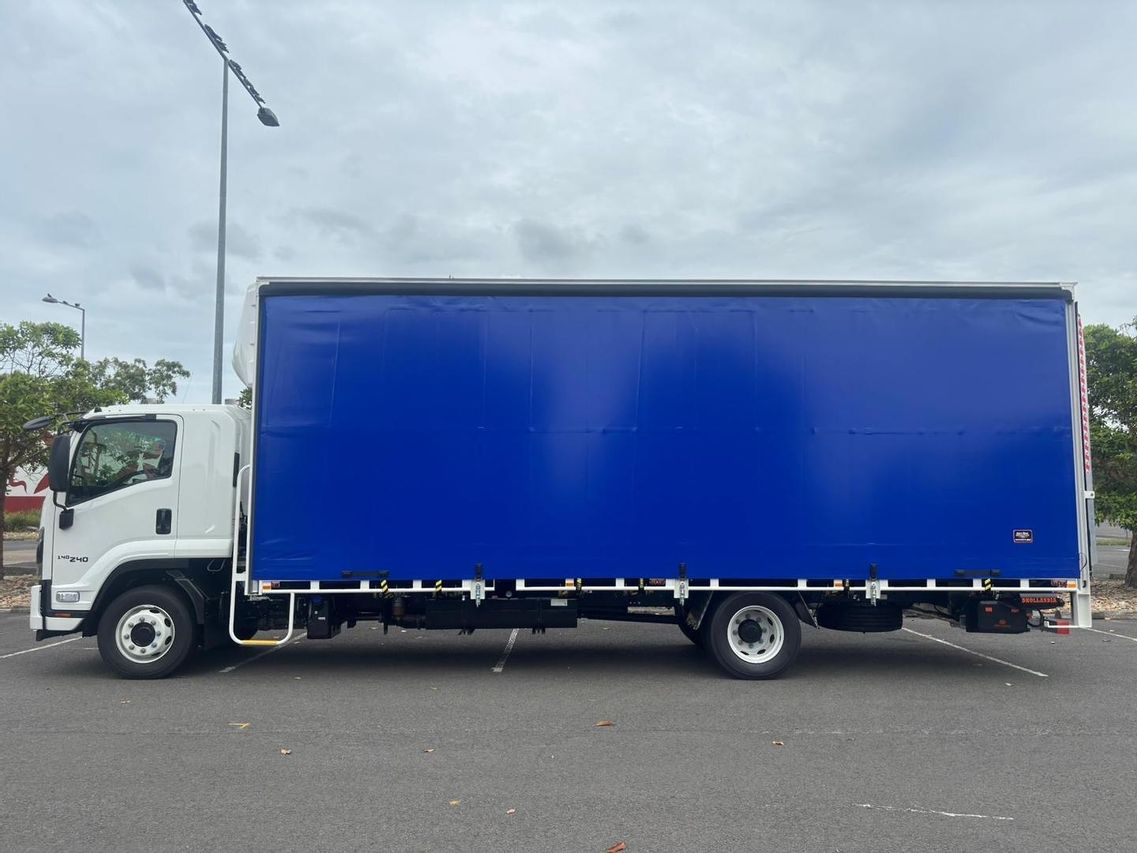

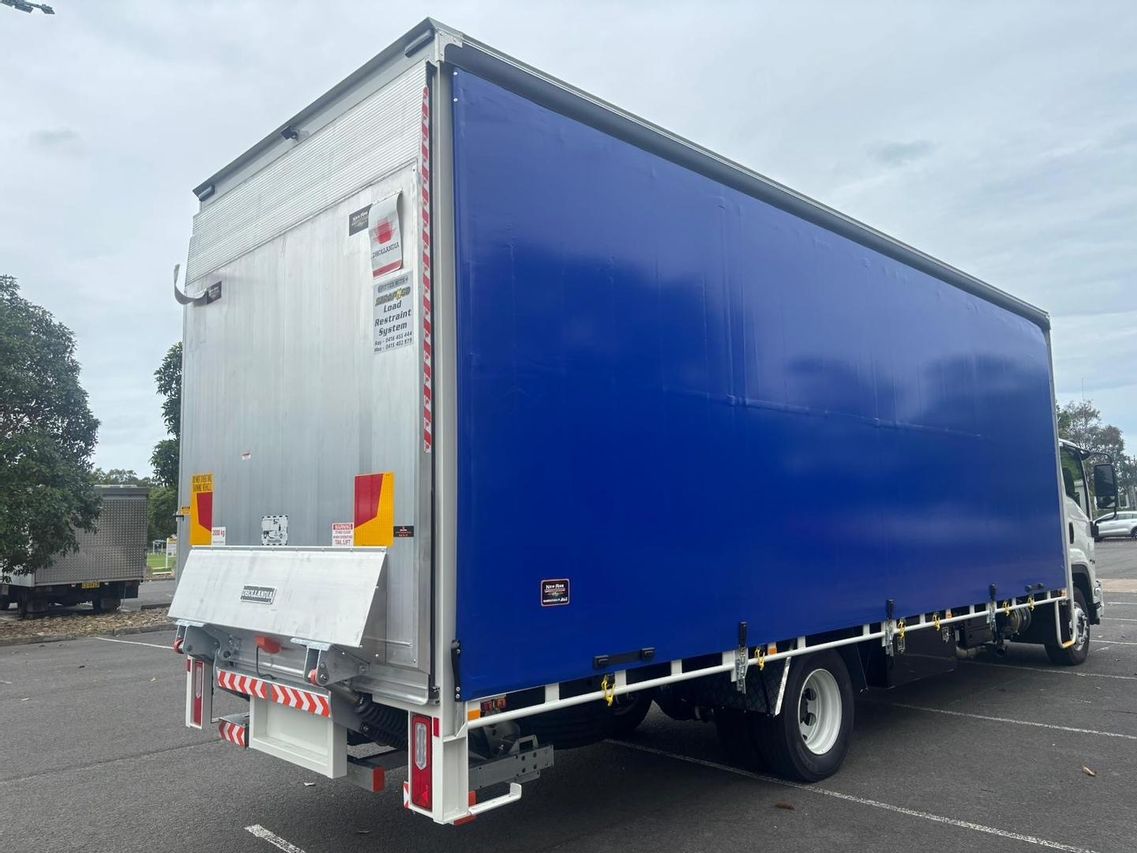

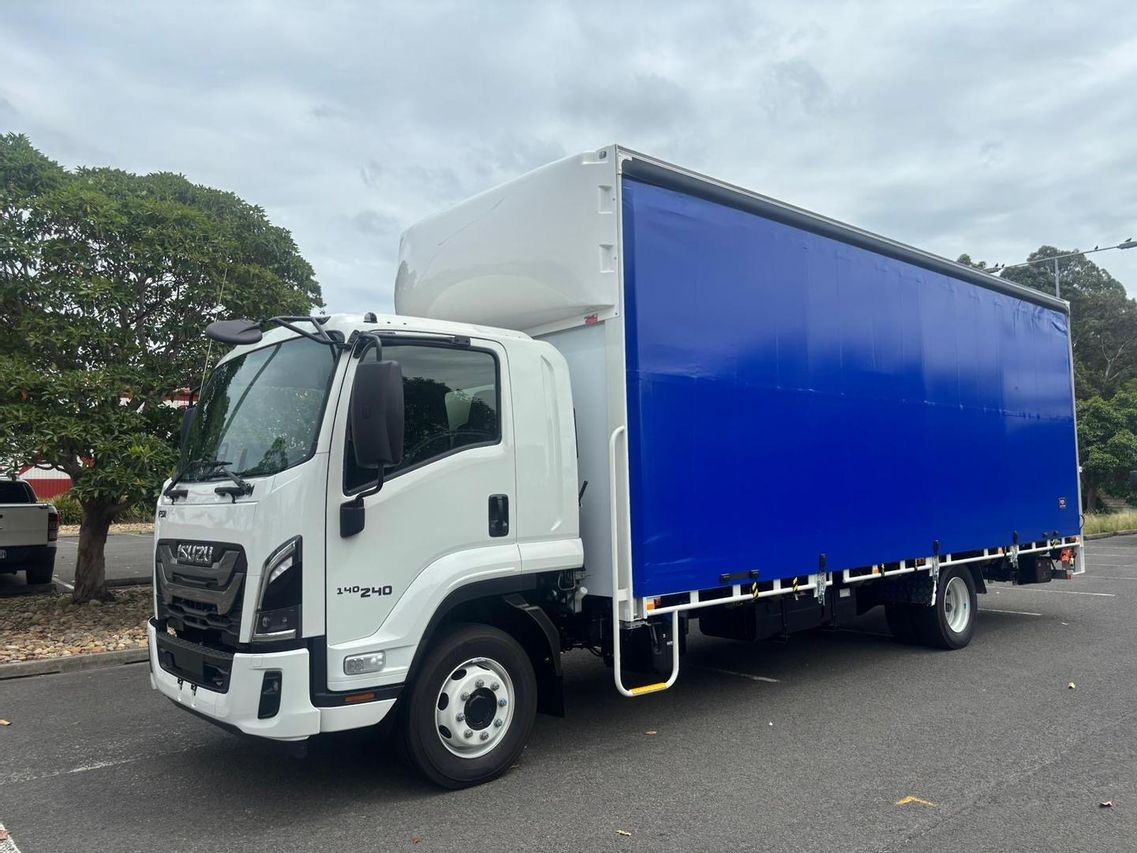

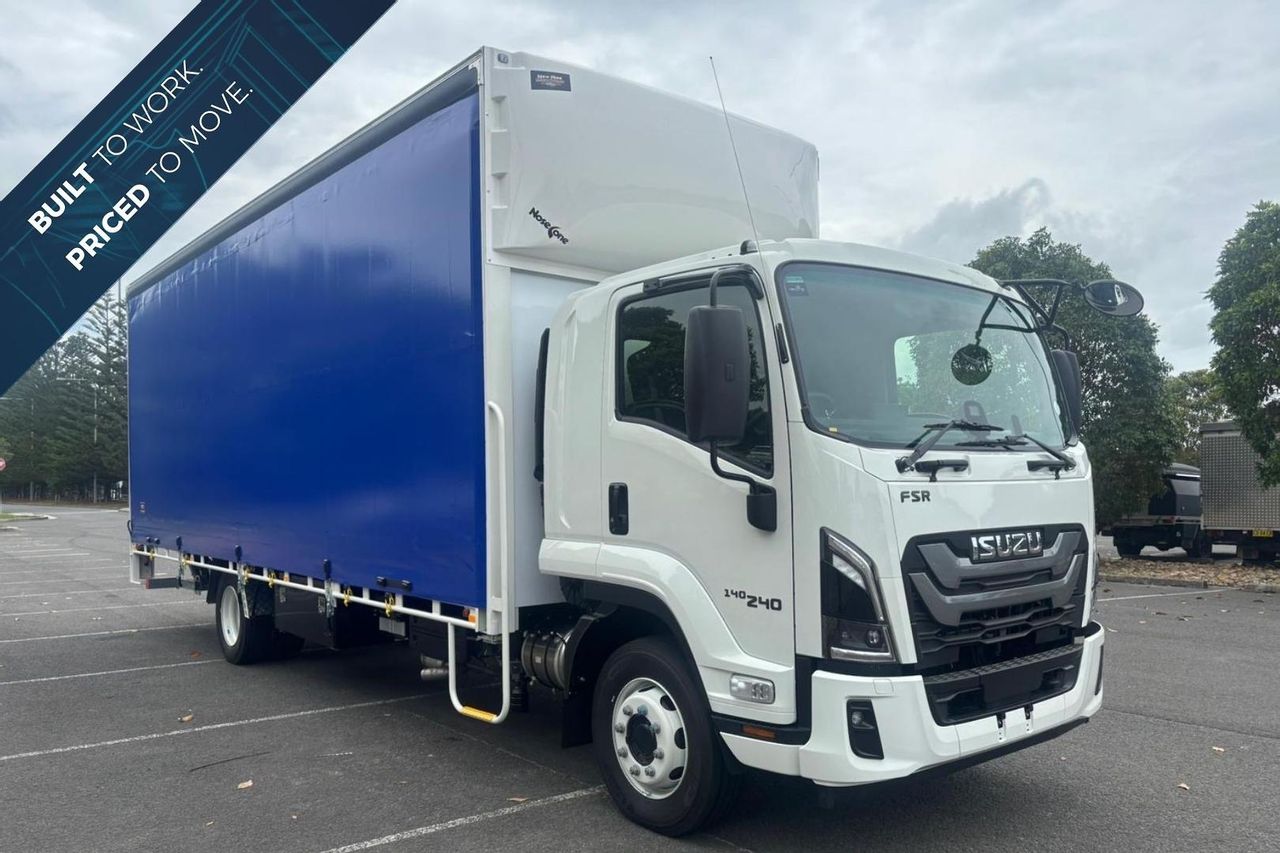

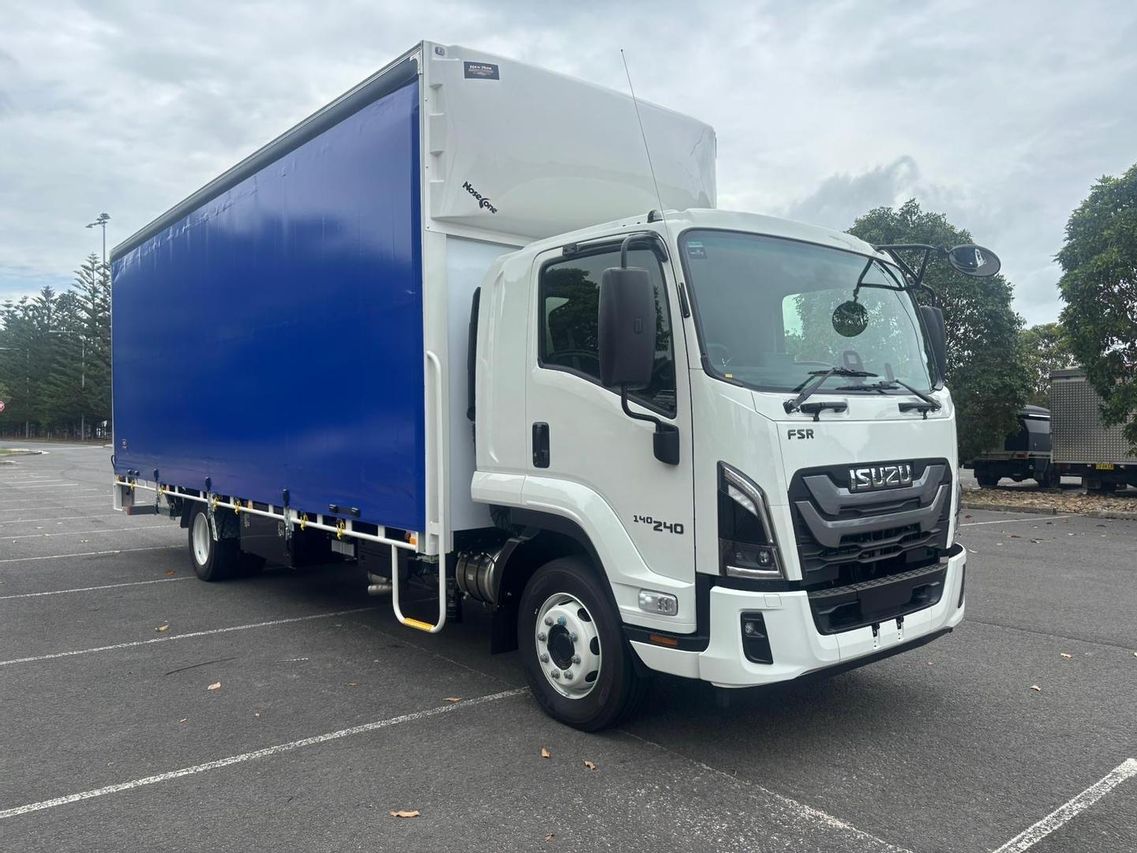

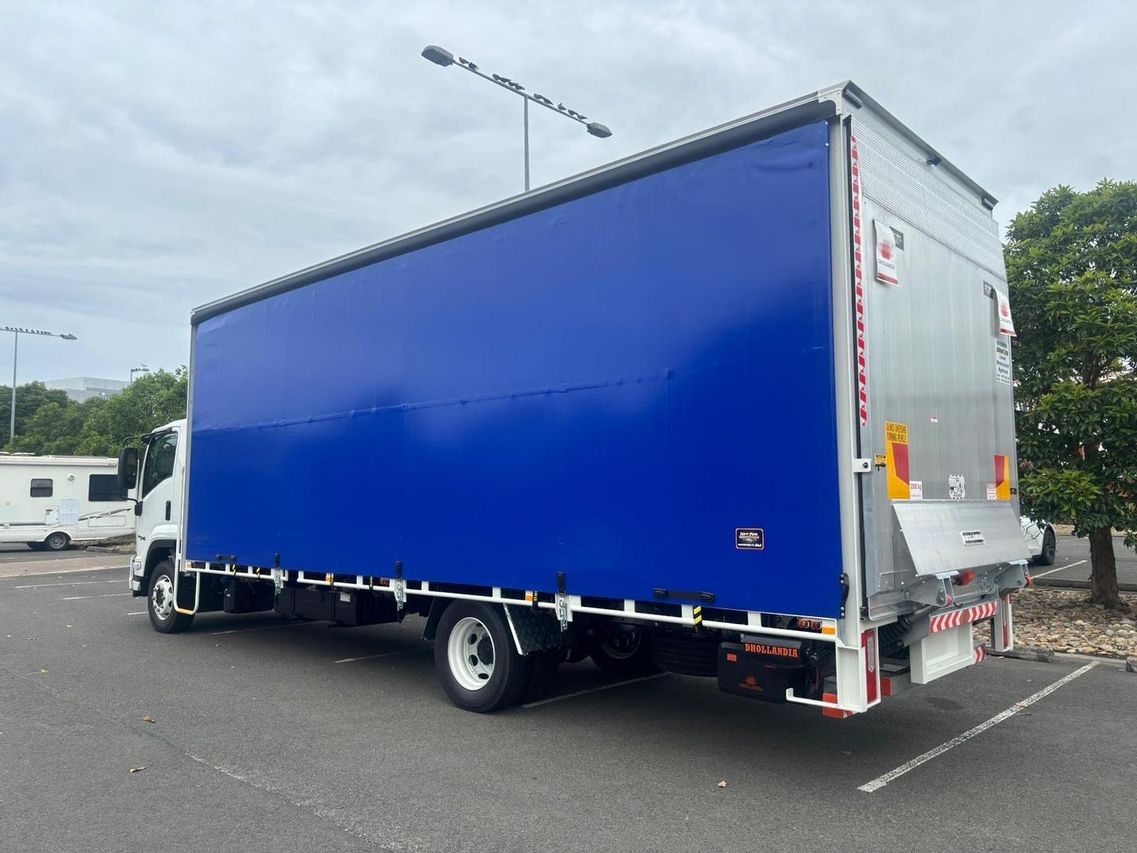

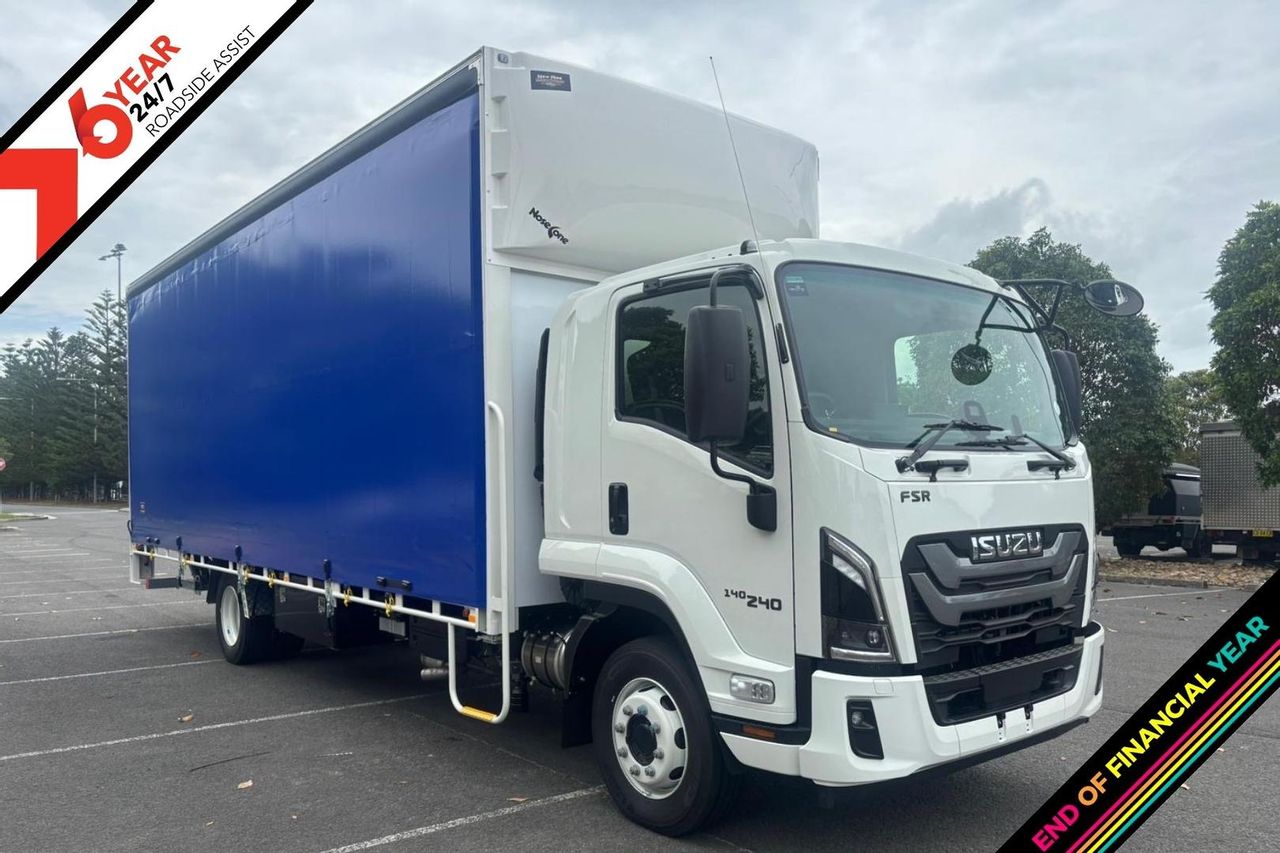

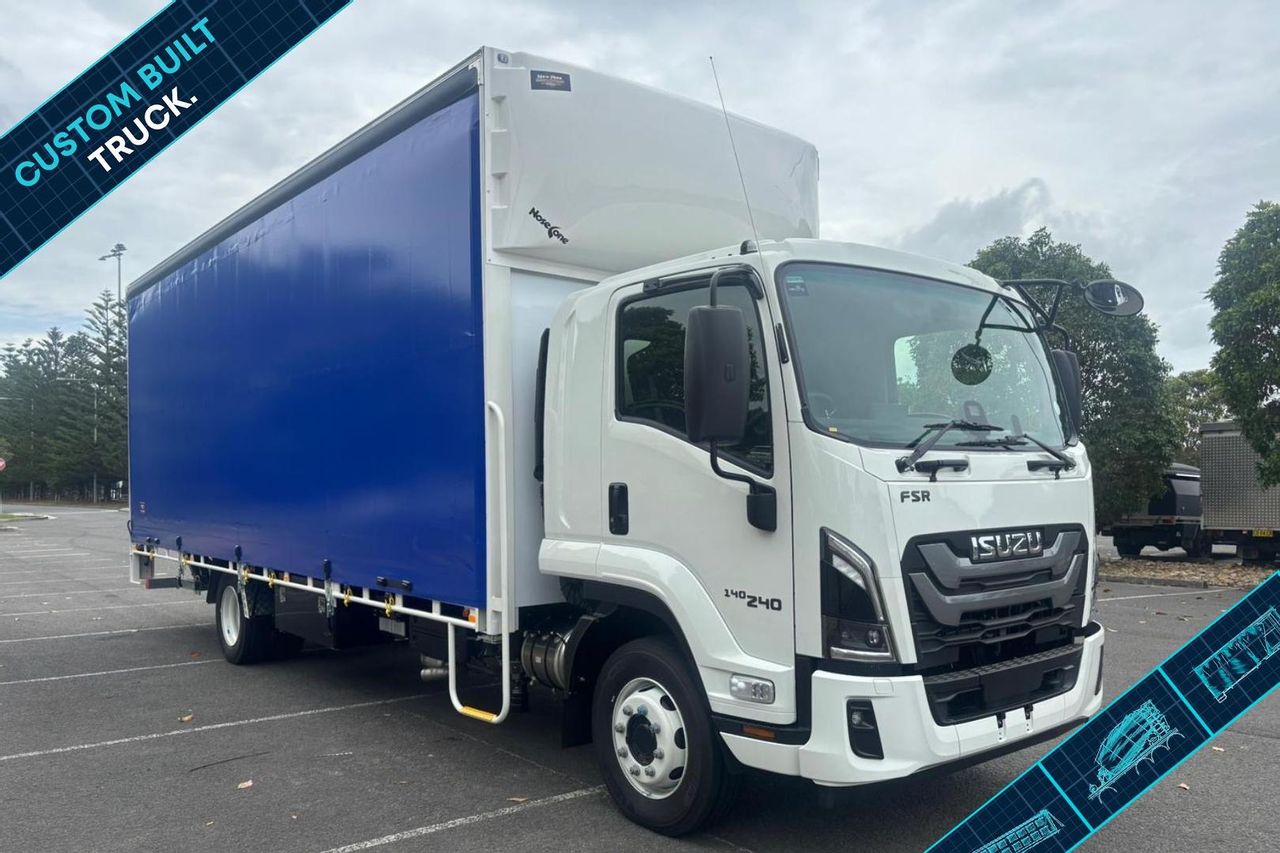

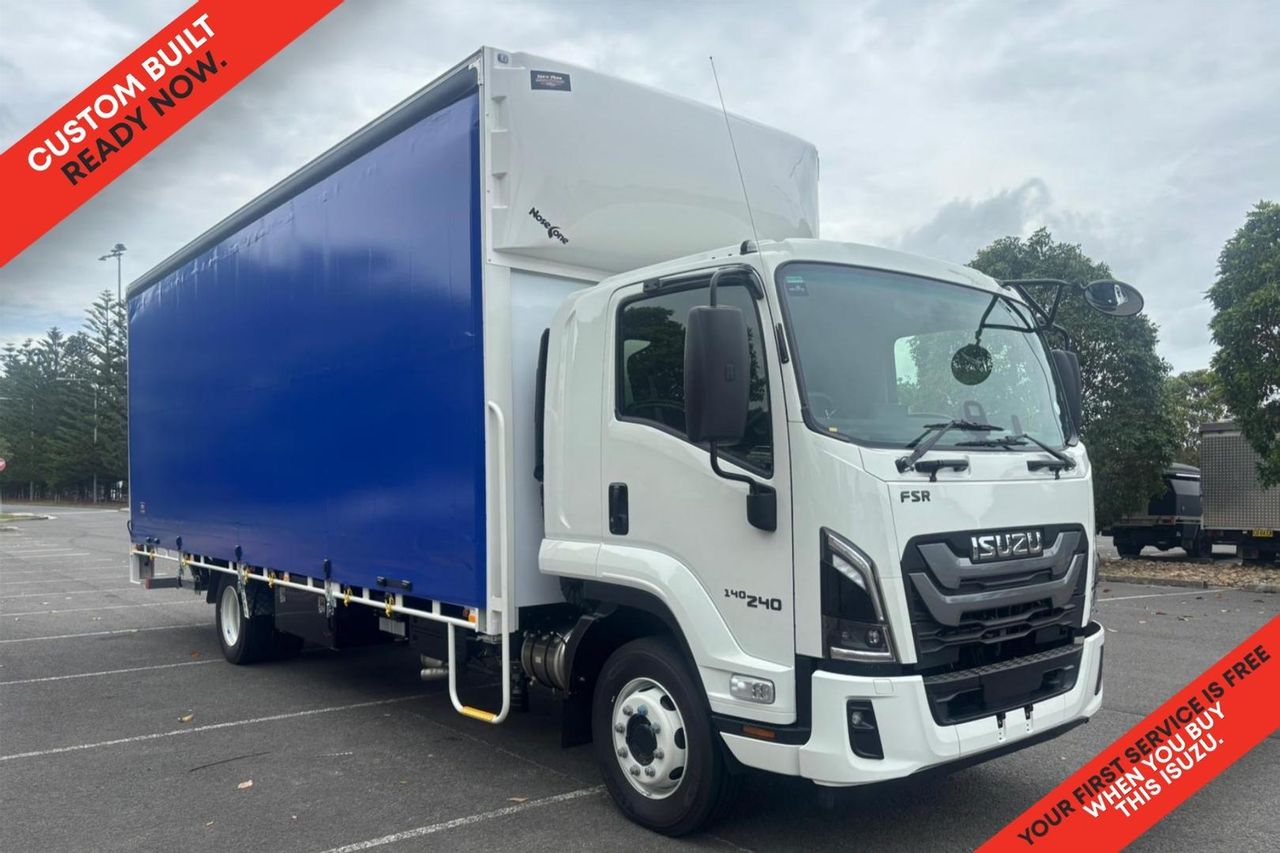

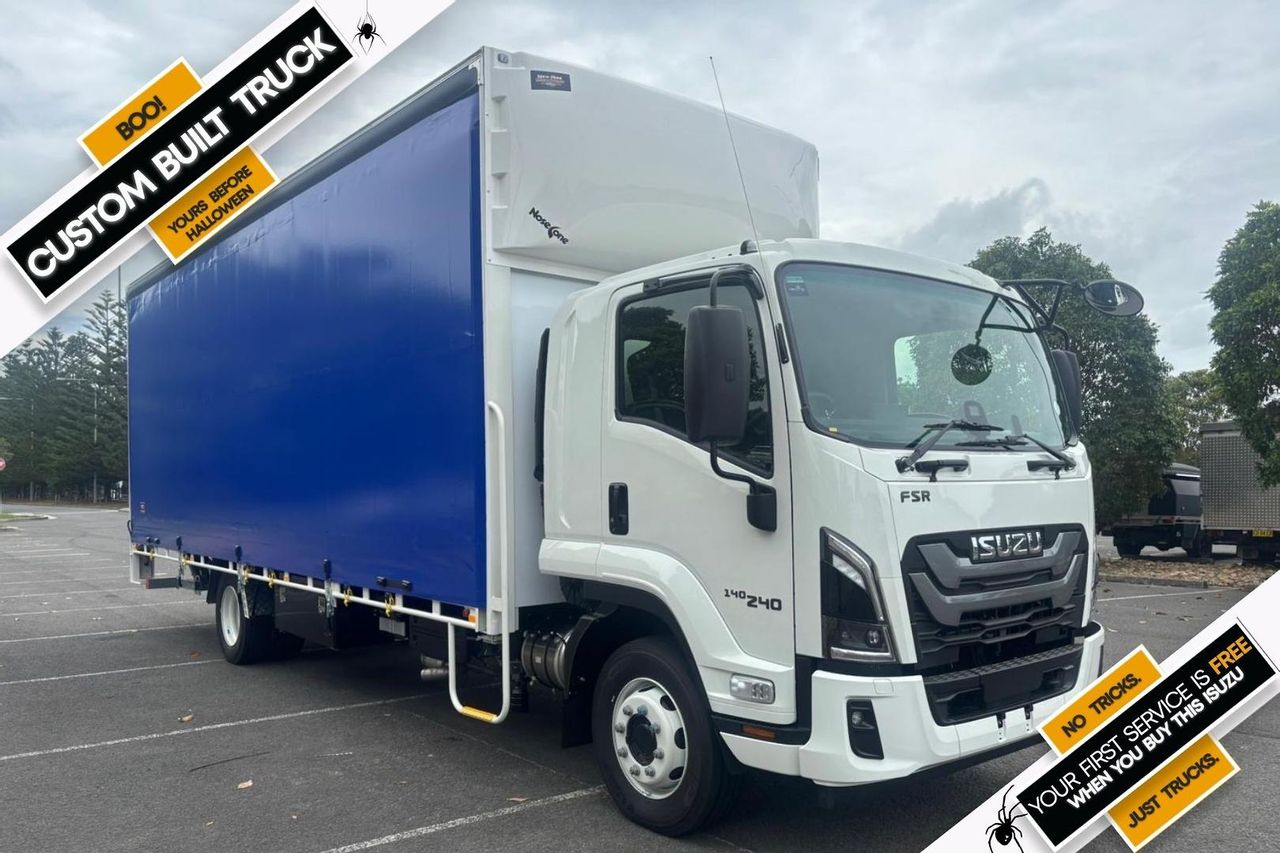

2025 Isuzu F Series FSR 140/120-240 AM R56 NEW AGE 12 Pallet Taughtliner and Tailgate

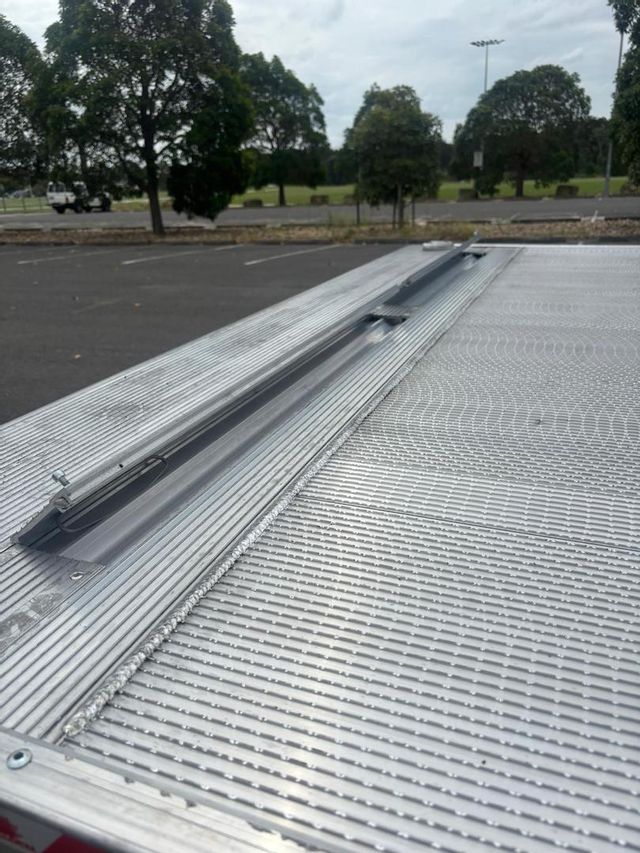

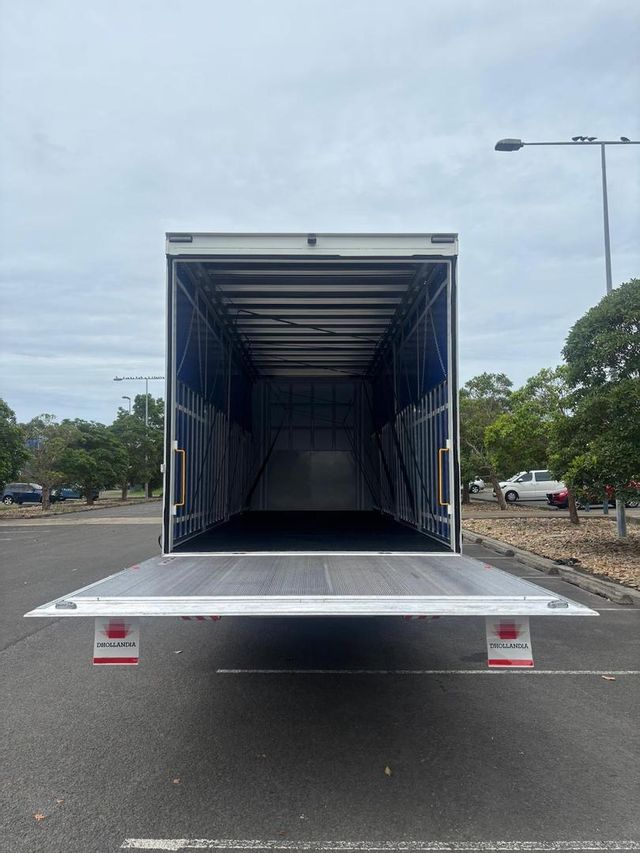

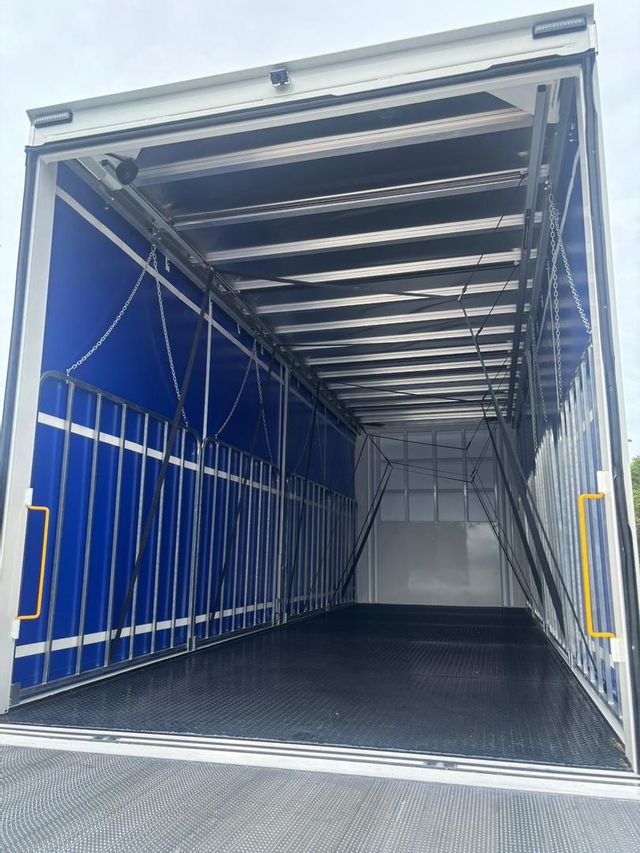

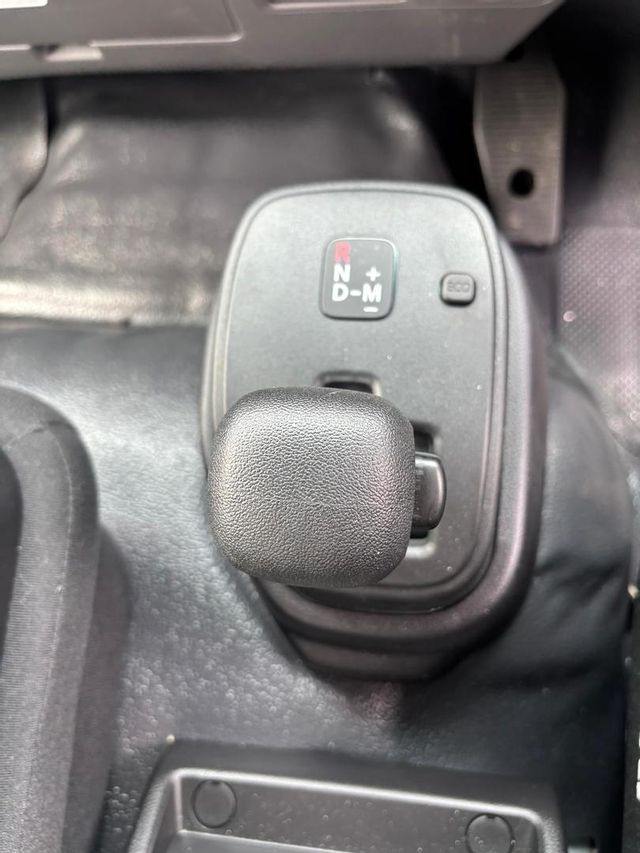

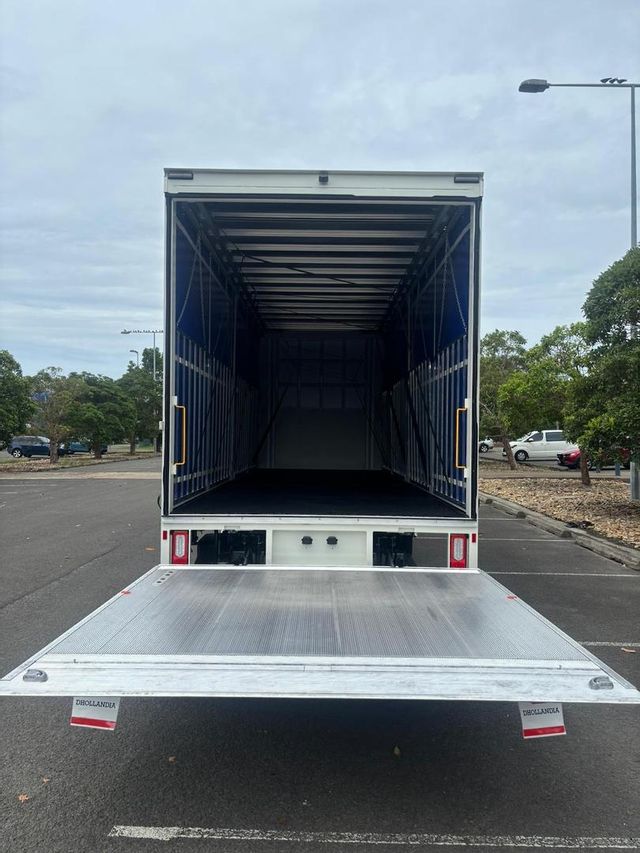

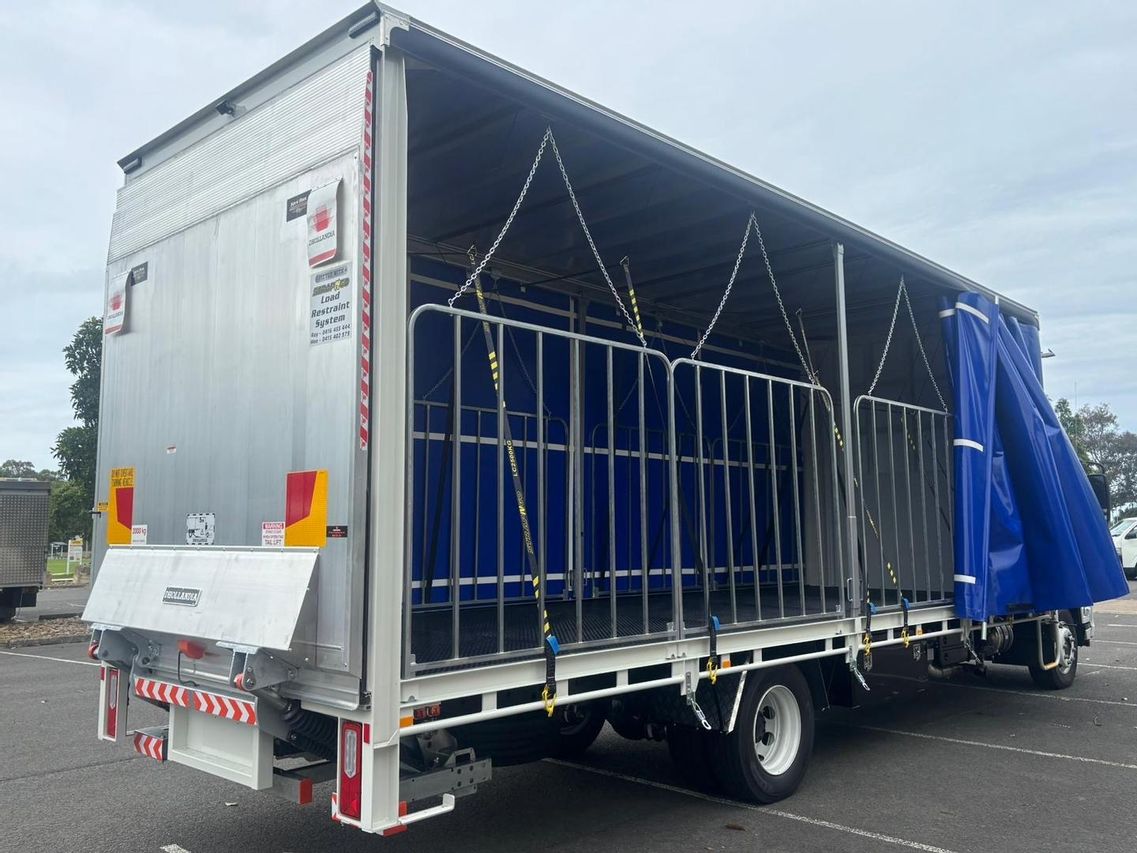

ISUZU FSR 140/120-240 AM R56 Medium Duty Cab Chassis ________________________________________ VEHICLE OVERVIEW Model: FSR 140/120-240 AM R56 GVM: 12,000 kg / 14,000 kg GCM: 18,500 kg Wheelbase: 5,560 mm Engine: Isuzu 4HK1-TCH 4 Cylinder Turbo Diesel Power: 177 kW @ 2,400 rpm Torque: 765 Nm @ 1,600 rpm Transmission: 6-Speed Automated Manual Transmission (AM) ________________________________________ BODY SPECIFICATION Heavy Duty 12 Pallet Taughtliner 7625mm overall length 2495mm overall width 2500mm Side opening Floor base 5mm steel chequer plate floor sheets painted black 125 x 65mm channel floor main runners bolted to the chassis rails with channel fitch plates 75 x 40mm channel cross bearers welded to the main runners 100 x 50mm Channel side combing rails raised 18mm above the floor sheets Heavy duty Rope rail pipe to full length of body on each side of the body Pipe or RHS stirrup steps with chequer plate foot platforms on each side of the body at the front only RHS framed front wall assembly with flush load capability Front mounted steel curtain Tensioners and curtain wrapper posts Full aluminium constructed roof with structural curtain track incorporating a full-length sliding track Roof double braced to the front wall and rear frame of body Pelmet rubber on each side 1500mm Lift out hanging gate 6 x Under body sliding winches with Strap N Go Nosecone Underbody toolbox 2000kg rear sealing tailgate Aluminium platform to suit height Extend rear of chassis approximately 500mm to rear of body to fit loader, including updated engineer certification Curtains 890 gsm curtain set with bearing guide rollers and stainless-steel buckles Electrical One (1) only LED work lamp with external operating switch wired to the parking lamps ADR approved LED clearance and marker lamps only fitted to comply with all regulations Standard inclusions: Aluminium propeller plate mudguards ________________________________________ FEATURES ADR 80/04 (pPNLT) Compliant Adaptive Driving Beam (ADB) Bi-LED Headlamps with Daytime Running Lamps (DRL) ECE-R29 Cab with Side Anti-Intrusion Beams ISRI 6860/875 NTS2 Air Suspension Driver's Seat Hill Start Assist (HSA) ________________________________________ CHASSIS Front Axle Capacity: 5,000 kg Rear Axle Capacity: 9,000 kg Fuel Tank: 200 L Steel AdBlue Tank: 28 L High-Density Polyethylene Front Axle Tyres: 265/70R19.5 140/138M Michelin X Multi Z Rear Axle Tyres: 265/70R19.5 140/138M Michelin X Multi Z ________________________________________ CABIN Automatic Climate Control ISRI 6860/875 NTS2 Air Suspension Driver's Seat with Heating and Ventilation 10.1" High Definition Touchscreen Truck Tailored GPS Navigation with Live Traffic and Map Content Updates Android Auto & Apple CarPlay Compatible Wi Fi Connectivity Bi LED Headlamps with Daytime Running Lamps (DRL) LED Front Fog Lamps LED Tail Lamps Reverse Alarm ________________________________________ WARRANTY & SERVICE Chassis Warranty: 6 Years / 300,000 km / Unlimited Hours Service Interval: 25,000 km / 12 Months / 500 Hours (Whichever Occurs First) Roadside Assist: 6 Years / 24/7 Unlimited km ________________________________________ We are one of Sydney’s most convenient and trusted truck dealerships, located just 10 minutes from Sydney Airport and only 400 metres from Wolli Creek train station. We make buying, selling, and servicing your truck simple. If you're looking to sell, we offer free truck valuations with an onsite valuer / buyer providing obligation-free market appraisals—receive a competitive offer based on current market data. As an authorised Isuzu dealer, we’ve partnered with Qantas Business Rewards so your business can earn Qantas Points when purchasing Isuzu truck parts and accessories. We also offer Isuzu Service Agreements at the time of your truck purchase, helping you turn servicing into predictable, manageable costs. Plus, when you purchase a new Isuzu truck, your first service is free. To keep your business moving, our workshop provides after-hours servicing until 7pm, giving you more uptime and less downtime. IS THIS NOT THE PERFECT TRUCK FOR YOU? We keep a range of trucks in stock ready to work, available now for delivery. Send an enquiry so we can find what you need. NEED SOMETHING CUSTOM? We have trucks ready to build - so we can craft a truck exactly to what your business requires. Send an enquiry so we can build what you need. We are Isuzu experts and are confident we can find the right truck for you and your business.
